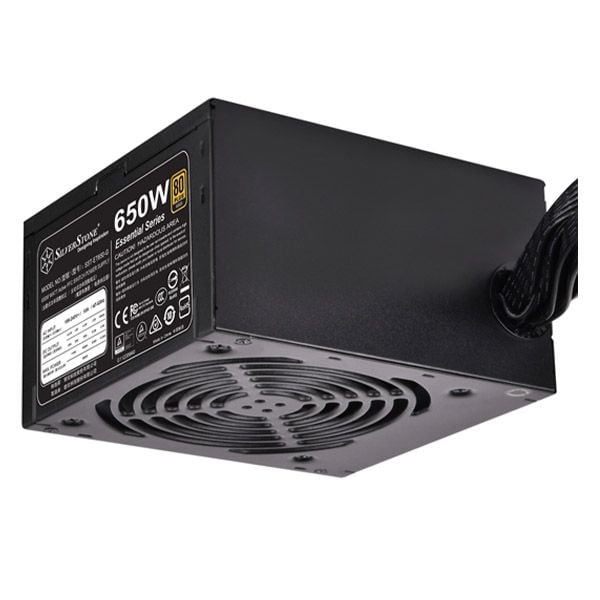

Model No. | SST-ET650-G |
Max. DC Output | 650W |
Power density | 360W per liter |
|
| +3.3V | +5V | +12V | +5VSB | -12V | Max.(Amps) | 20A | 20A | 53A | 2.5A | 0.3A | Peak (Amps) | / | / | / | 3.0A | / | Min.(Amps) | 0A | 0A | 0A | 0A | 0A | Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% | Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% | Ripple(mVp-p) | 50mA | 50mA | 120mV | 50mV | 120mV |
|
Color | Black(Lead-Free Paint) |
Combined +3.3V & +5V | 110W |
Combined +12V | 636W |
Input Voltage | 90 ~ 264 Vrms |
Input Frequency Range | 47Hz ~ 63Hz |
PFC | Active PFC(PF>0.9 at full load) |
Efficiency | 87% ~ 90% at 20% ~ 100% loading |
MTBF | 100,000 hours |
Operating temperature | 0°C ~ 40°C |
Protection | Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection |

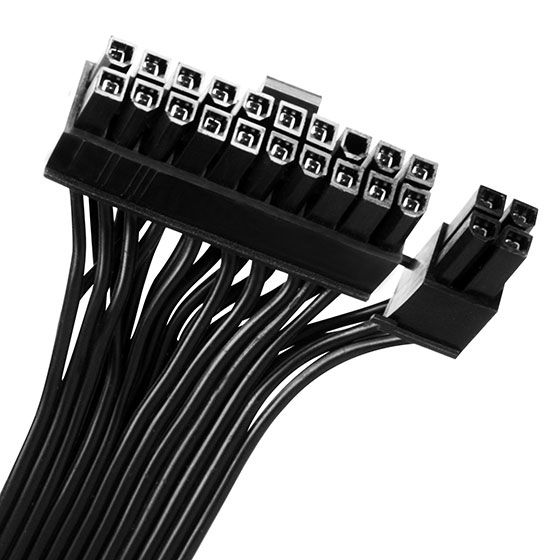

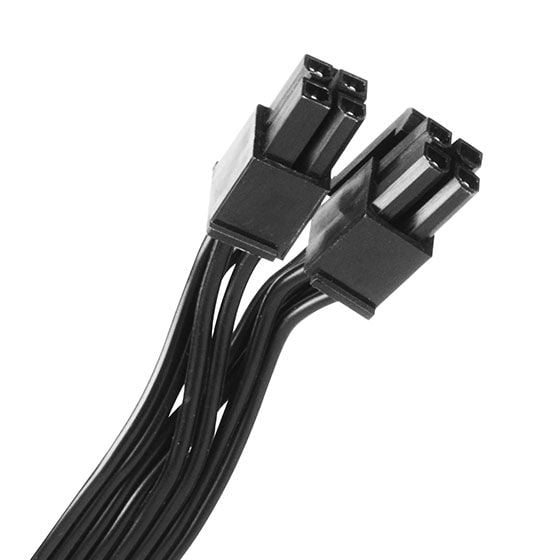

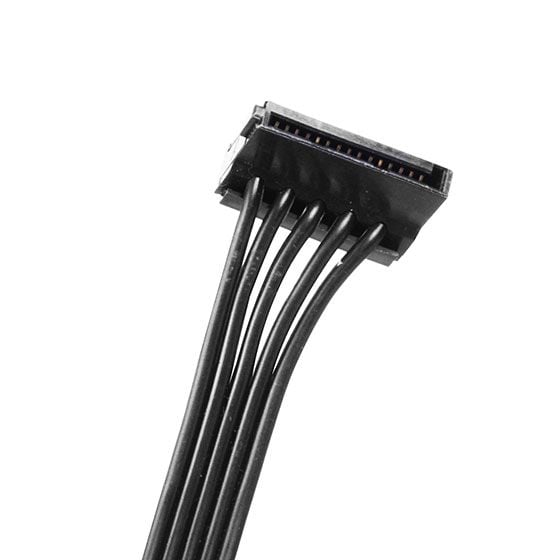

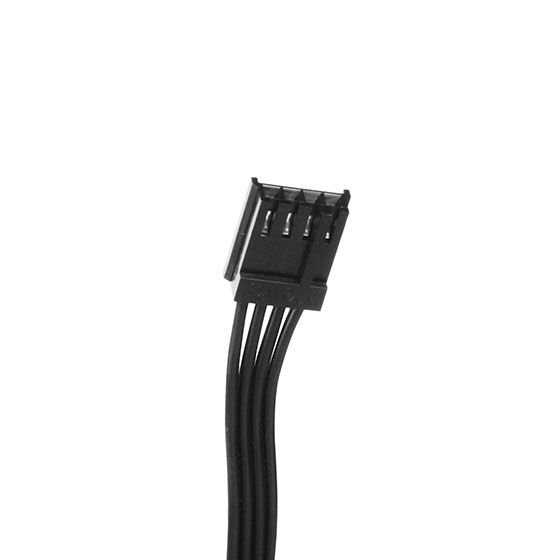

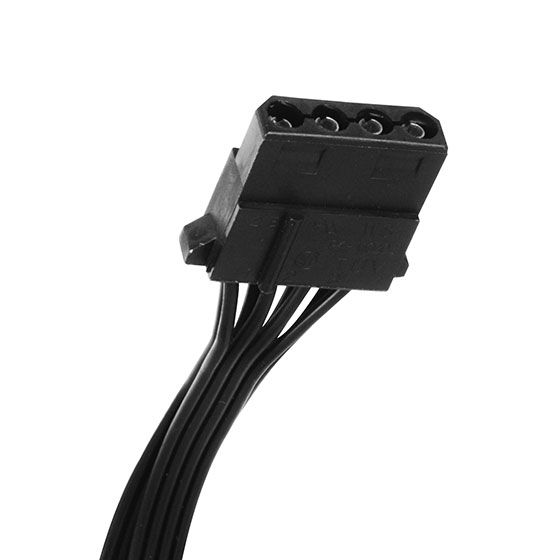

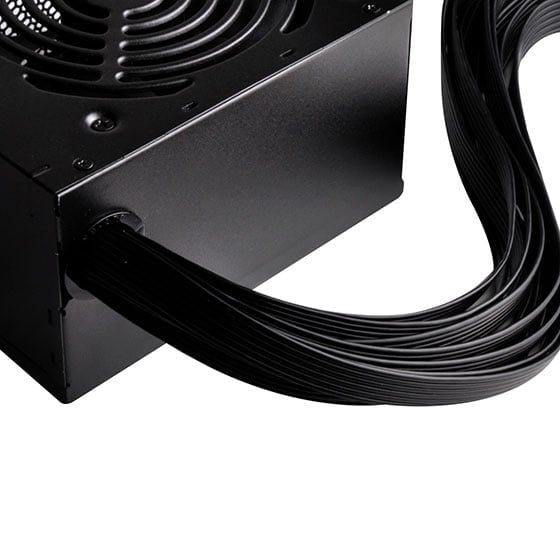

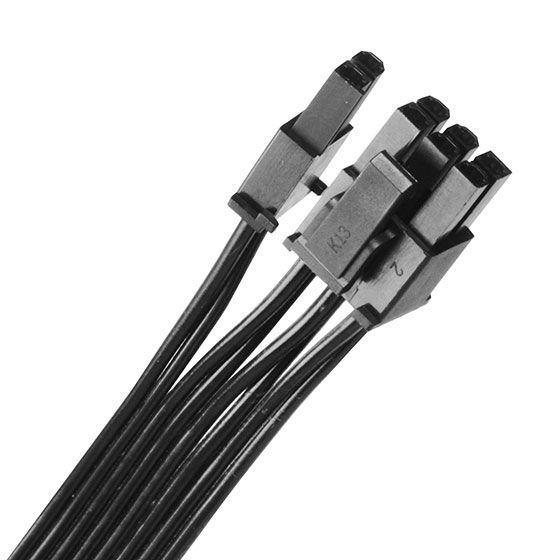

Connectors | 1 x 24 / 20-Pin motherboard connector (500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2) 8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm) |

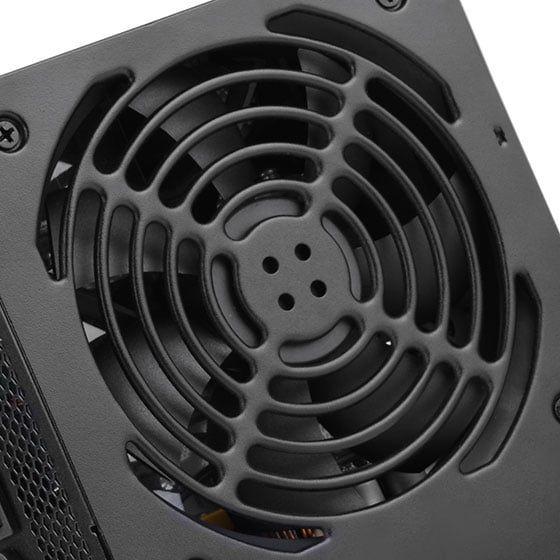

Cooling System | Single 120mm silent fan |
Form factor | ATX |
Noise Level | 18dBA minimum |

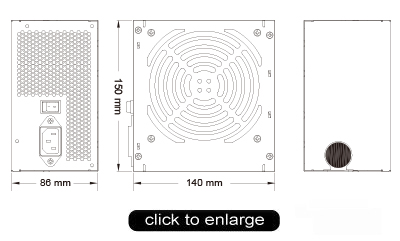

Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
Weight | 1.64 Kg |
Certification | 80 PLUS Gold |
Other | GPU Support list Compatible with ATX12V v2.4 |
