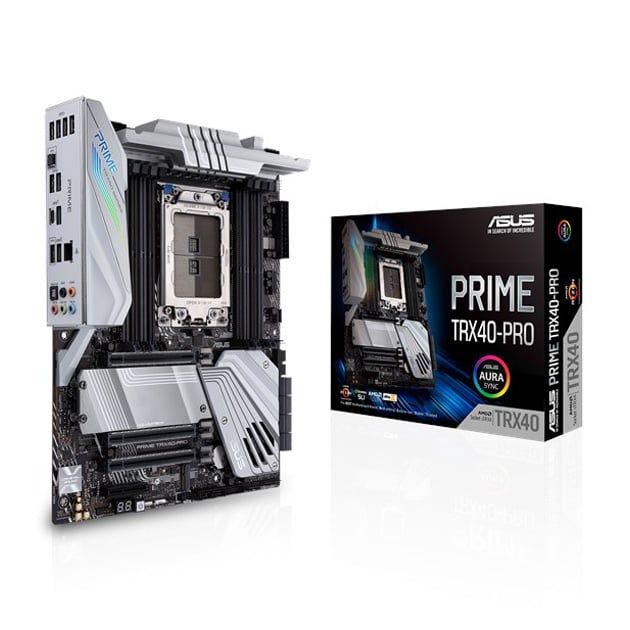

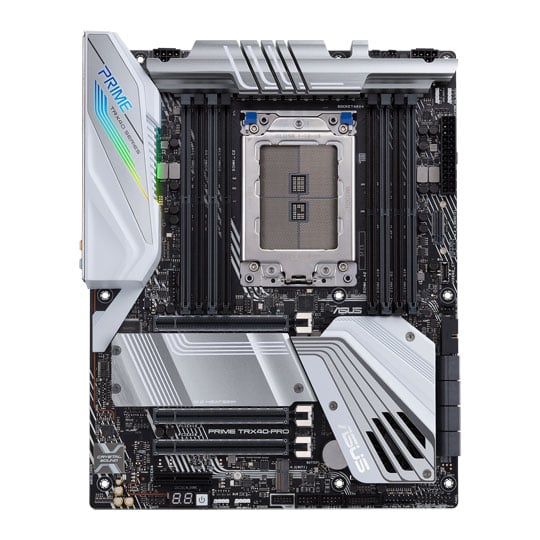

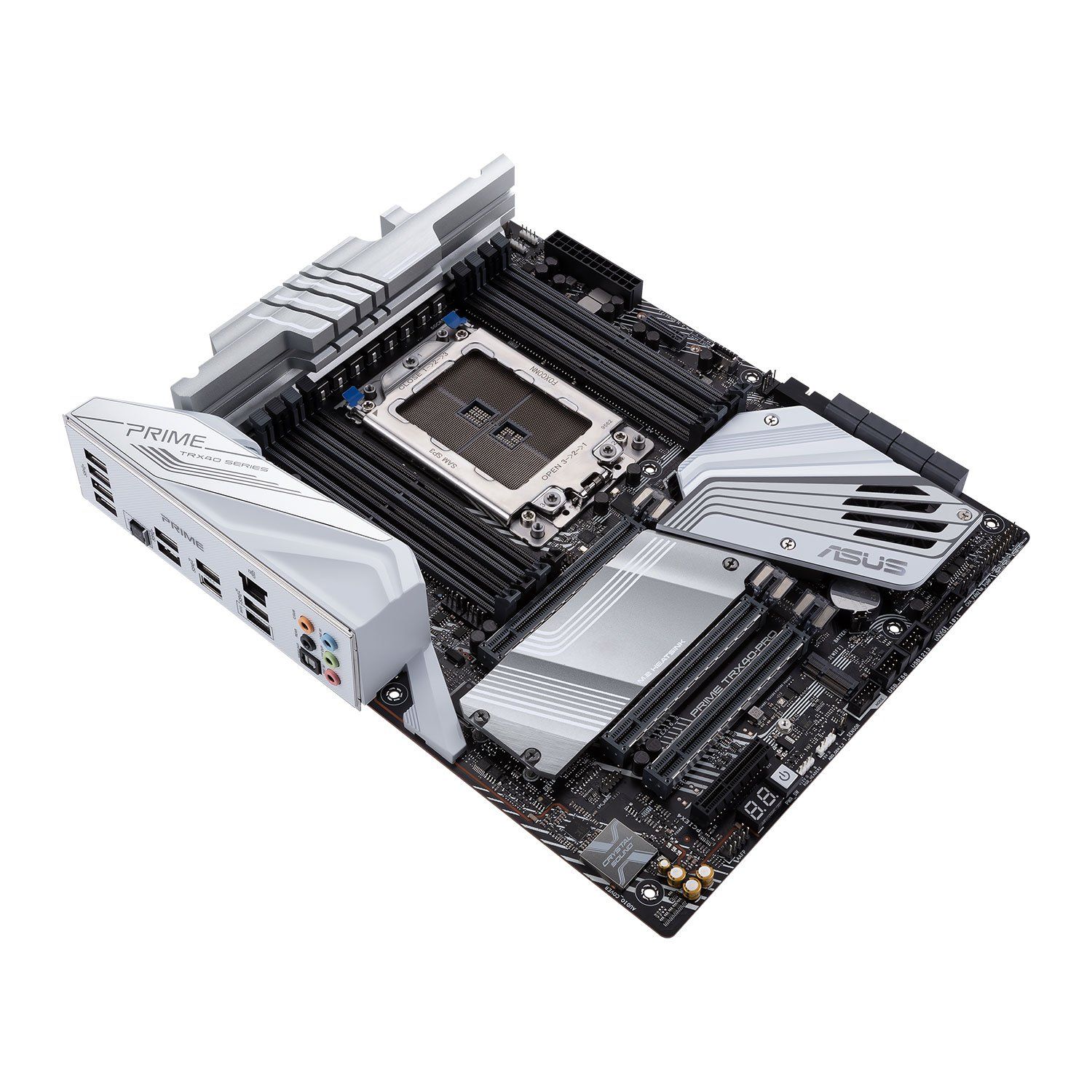

ASUS Prime TRX40 -Pro
12.490.000₫
Số lượng:
Quà tặng khuyến mãi
- Nhà sản xuất : ASUS
- Bảo hành : 36 tháng
- Tình trạng: Mới 100%
Khuyến mãi
Gợi ý mua kèm
Thông tin sản phẩm
Thông số kỹ thuật
| Mô tả chi tiết | |
| CPU | AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Refer to www.asus.com for CPU support list |
| Chipset | Build in AMD TRX40 |
| Bộ nhớ
| 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory | |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI® Technology |
| Supports NVIDIA® 2-Way SLI® Technology | |
| Supports AMD Quad-GPU CrossFireX™ Technology | |
| Supports AMD 2-Way CrossFireX Technology | |
| Expansion Slots | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 3 x PCIe 4.0 x16 (x16/x16/x16) * | |
| AMD TRX40 chipset | |
| 1 x PCIe 4.0 (x4 mode) | |
| Storage | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : |
| 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) | |
| AMD TRX40 chipset : | |
| 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| 8 x SATA 6Gb/s port(s), | |
| Support Raid 0, 1, 10 | |
| LAN | Intel® I211-AT |
| ASUS Turbo LAN Utility | |
| ASUS LAN Guard | |
| Audio | Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 |
| - Impedance sense for front and rear headphone outputs | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in) | |
| Audio Feature : | |
| - DTS X®:Ultra | |
| - Optical S/PDIF out port(s) at back panel | |
| Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
| - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
| #NAME? | |
| - Unique de-pop circuit: Reduces start-up popping noise to audio outputs | |
| USB Ports | AMD Ryzen™ Threadripper™ Processors : |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) | |
| AMD TRX40 chipset : | |
| 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) | |
| AMD TRX40 chipset : | |
| 6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) | |
| AMD TRX40 chipset : | |
| 2 x USB 2.0 port(s) (2 at mid-board) | |
| ASMedia® USB 3.2 Gen 1 controller : | |
| 4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) | |
| GL852G USB Hub : | |
| 2 x USB 2.0 port(s) (2 at mid-board) | |
| Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : |
| 5Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App | |
| ASUS SafeSlot - Protect your graphics card Investment | |
| AURA : | |
| - Aura RGB Strip Headers | |
| - Aura Lighting Effects Synchronization with compatible ASUS ROG devices | |
| - Addressable Gen 2 Header | |
| ASUS Exclusive Features : | |
| - AI Suite 3 | |
| - Ai Charger | |
| - Onboard Button : Power | |
| - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface | |
| - Turbo LAN | |
| - Crystal Sound 3 | |
| - Armoury Crate | |
| - Pre-mounted I/O Shield | |
| ASUS Quiet Thermal Solution : | |
| - Stylish Design Heat-pipe solution | |
| - Stylish Fanless Design with M.2 Heat-sink solution | |
| - ASUS Fan Xpert 4 | |
| ASUS EZ DIY : | |
| - ASUS EZ Flash 3 | |
| - ASUS USB BIOS FlashBack™ | |
| - ASUS UEFI BIOS EZ Mode | |
| - Multi-language BIOS | |
| ASUS Q-Design : | |
| - ASUS Q-Code | |
| - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |
| - ASUS Q-Connector | |

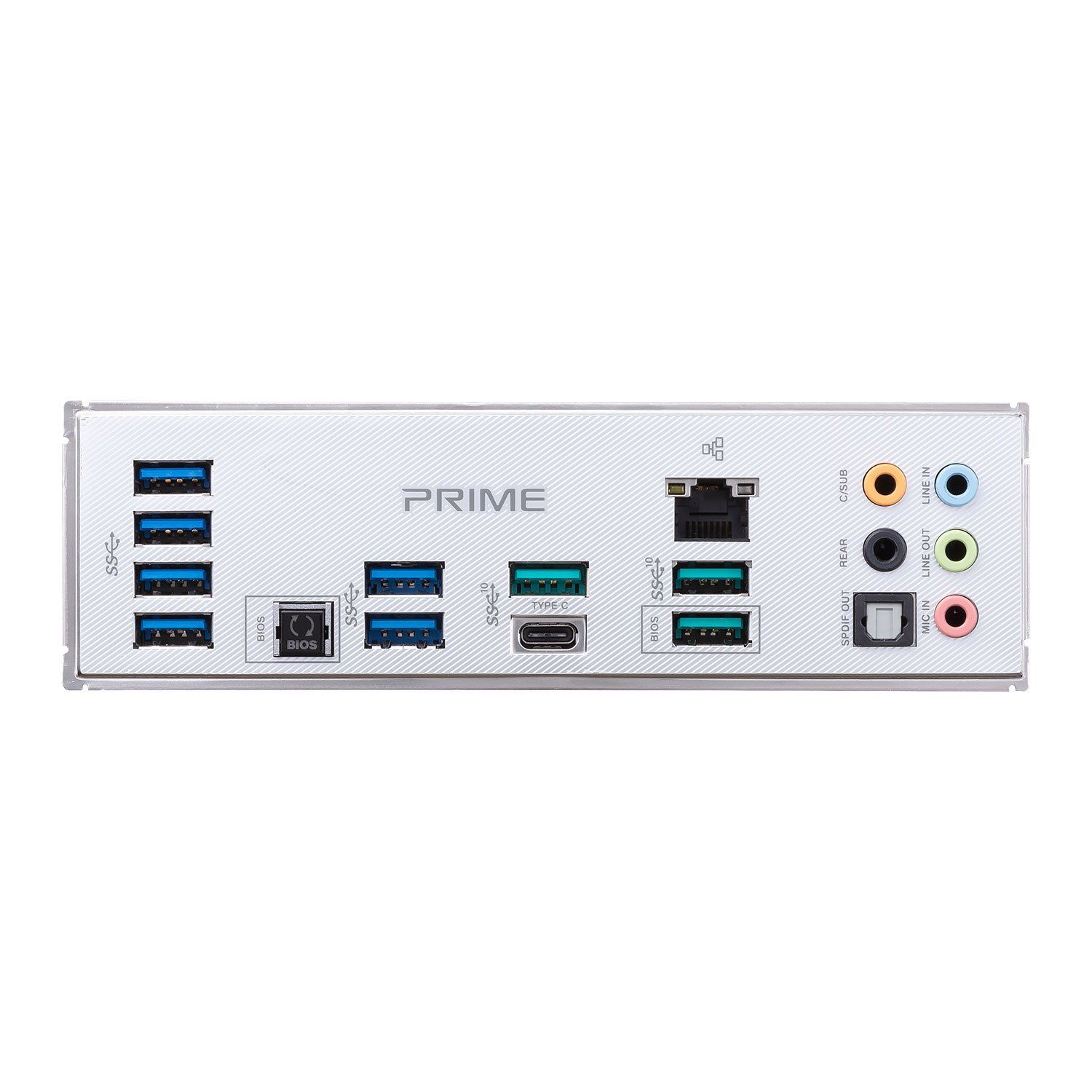

| Back I/O Ports | 1 x LAN (RJ45) port(s) |
| 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™) | |
| 6 x USB 3.2 Gen 1 (blue) | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 1 x USB BIOS FlashBack™ Button(s) | |
| Internal I/O Ports | 1 x Q_Code |
| 2 x Aura RGB Strip Header(s) | |
| 2 x Addressable Gen 2 header(s) | |
| 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| 1 x M.2 with E key for Wi-Fi module | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) (1 x 4 -pin) | |
| 1 x CPU OPT Fan connector(s) (1 x 4 -pin) | |
| 3 x Chassis Fan connector(s) (3 x 4 -pin) | |
| 1 x AIO_PUMP connector (1 x 4 -pin) | |
| 1 x W_PUMP+ connector (1 x 4 -pin) | |
| 1 x 24-pin EATX Power connector(s) | |
| 2 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) (Q-Connector) x With flexkey function | |
| 1 x Thermal sensor connector(s) | |
| 1 x Power-on button(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x Node Connector(s) | |
| 1 x USB 3.2 Gen 2 front panel connector | |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WfM 2.0, WOL by PME, PXE |
| Hệ điều hành | Support for Windows 10 64-bit |
| Kích Thước | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
