CPU | Intel® Socket 2066 Core™ X-Series Bộ vi xử lý * Hỗ trợ Công nghệ Intel® Turbo Boost Max Technology 3.0 tùy thuộc vào loại CPU. |
Chipset | Intel® X299 |
Bộ nhớ | Intel® Core™ X-Series Processors Family 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of inpidual CPUs. |
Hỗ trợ Multi-GPU | Supports NVIDIA® Quad-GPU SLI® Technology Supports NVIDIA® 3-Way SLI® Technology Supports NVIDIA® 2-Way SLI® Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology |
khe cắm mở rộng | 44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0/2.0 x1 *1 28-Lane CPU- 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) *2 2 x PCIe 3.0/2.0 x1 *1 |
Lưu trữ | Intel® X299 Chipset : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 8 x SATA 6Gb/s port(s)*5 Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Intel® Optane™ Memory Ready *6 |
LAN | Aquantia AQC111C 5G LAN Intel® I219V, 1 x Gigabit LAN ASUS Turbo LAN Utility ASUS LAN Guard |
Âm thanh | Realtek® S1220A 8-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS X®:Ultra - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
cổng USB | Intel® Thunderbolt™ 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-CTM) ASMedia® USB 3.2 Gen 2 controller : *1 1 x USB 3.2 Gen 2 front panel connector port(s) GL852G USB Hub : 4 x USB 2.0 port(s) Intel® X299 Chipset : 5 x USB 3.2 Gen 1 port(s) (1 at back panel, , 4 at mid-board) Intel® X299 Chipset : 2 x USB 2.0 port(s) (2 at back panel, ) ASMedia® USB 3.2 Gen 1 Hub : 3 x USB 3.2 Gen 1 port(s) (3 at back panel, )) |
Tính năng đặc biệt | OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App AI Overclocking ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection 2 ” LiveDash AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - Onboard Button : Power - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - BIOS Flashback® Button - Clear CMOS Button ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - ASUS Fan Xpert 4 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Intel® Virtual RAID on CPU (VROC) ready DIY Friendly Design - ProCool II - SafeSlot |

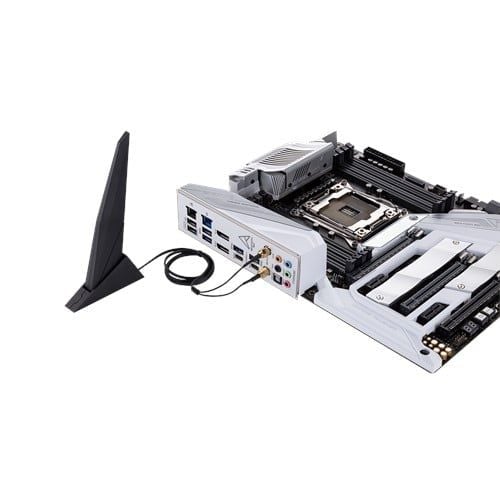

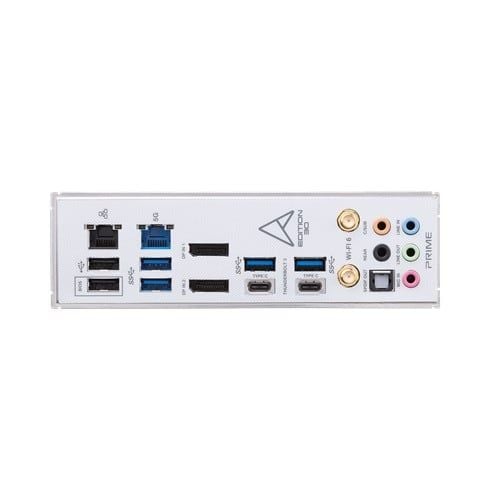

Cổng I / O phía sau | 2 x Thunderbolt 3 ports TypeC™ 2 x DisplayPort IN ports for Thunderbolt™ 3 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback®) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi Module 1 x AQC-111C 5G LAN port |
Cổng I/O ở trong | 2 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x System panel(s) (Q-Connector) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x Node Connector(s) 1 x USB BIOS Flashback® button(s) 1 x USB 3.1 Gen 2 front panel connector 1 x Q-Code 1 x FlexKey button |
Phụ kiện | User's manual 1 x Vertical M.2 bracket set 6 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x DisplayPort cable 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) Smart Control Console 1 x Smart Control Console 2 x micro USB 2.0 cables for Smart Console Console |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 Thuật sĩ Hiệu chỉnh EZ, F6 Kiểm soát Qfan, F3 Mục Ưa thích, Lần chỉnh sửa cuối cùng, Chức năng Chụp màn hình F12 và thông tin bộ nhớ ASUS DRAM SPD (Phát hiện Trạng thái Tuần tự) |
Khả năng quản lý | WfM 2.0, DMI 3.0, WOL by PME, PXE |
Hỗ trợ Disc | Trình điều khiển Các tiện ích ASUS EZ Update Phần mềm Anti-virus (phiên bản OEM) |
Hệ điều hành | Windows® 10 64-bit |
Dạng thiết kế | Dạng thiết kế ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Ghi chú | 1. PCIEX4_1 đạt tối đa ở chế độ x1, PCIEX4_2 đạt tối đa ở chế độ x4 2. SATA6G_5/6/7/8 chia sẻ băng thông với PCIEX4_2. 3. PCIEX1_1 chia sẻ băng thông với USB 3.1 Thế hệ 2 trên mặt trước 4. PCIEX16_3 chia sẻ băng thông với PCIEX4_1 khi sử dụng x28 hoặc x16 làn CPUs |
