ASUS PRIME Z590-A

Thông tin chung:

  • Hãng sản xuất: ASUS
  • Tình trạng: Mới
  • Bảo hành: 36 Tháng

Giá: 7,540,000₫

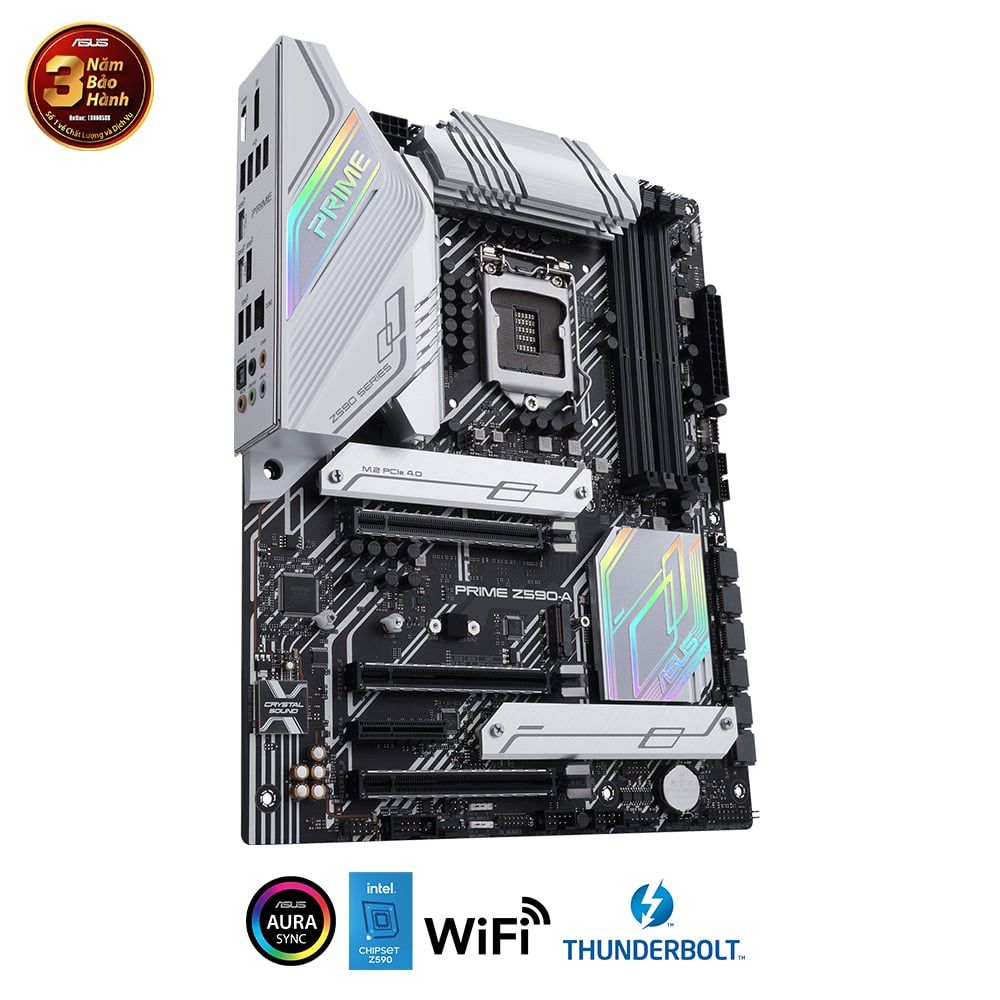

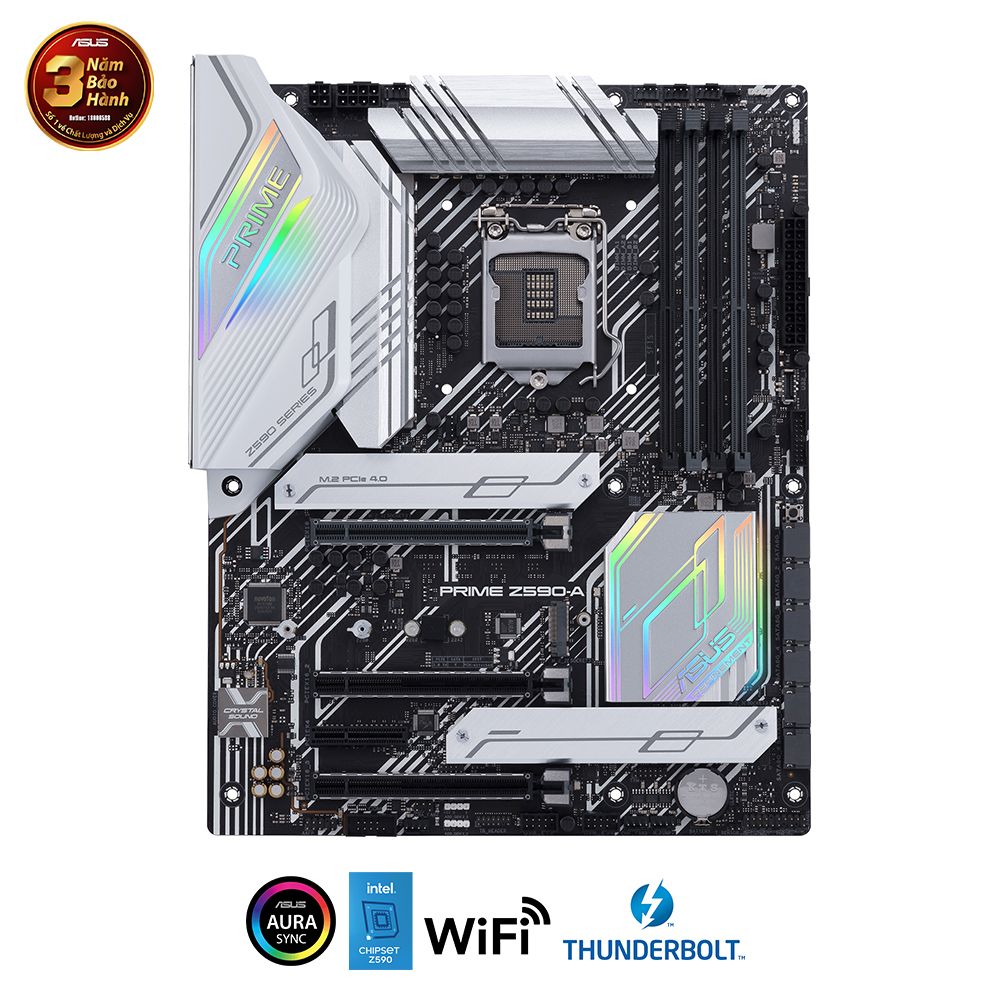

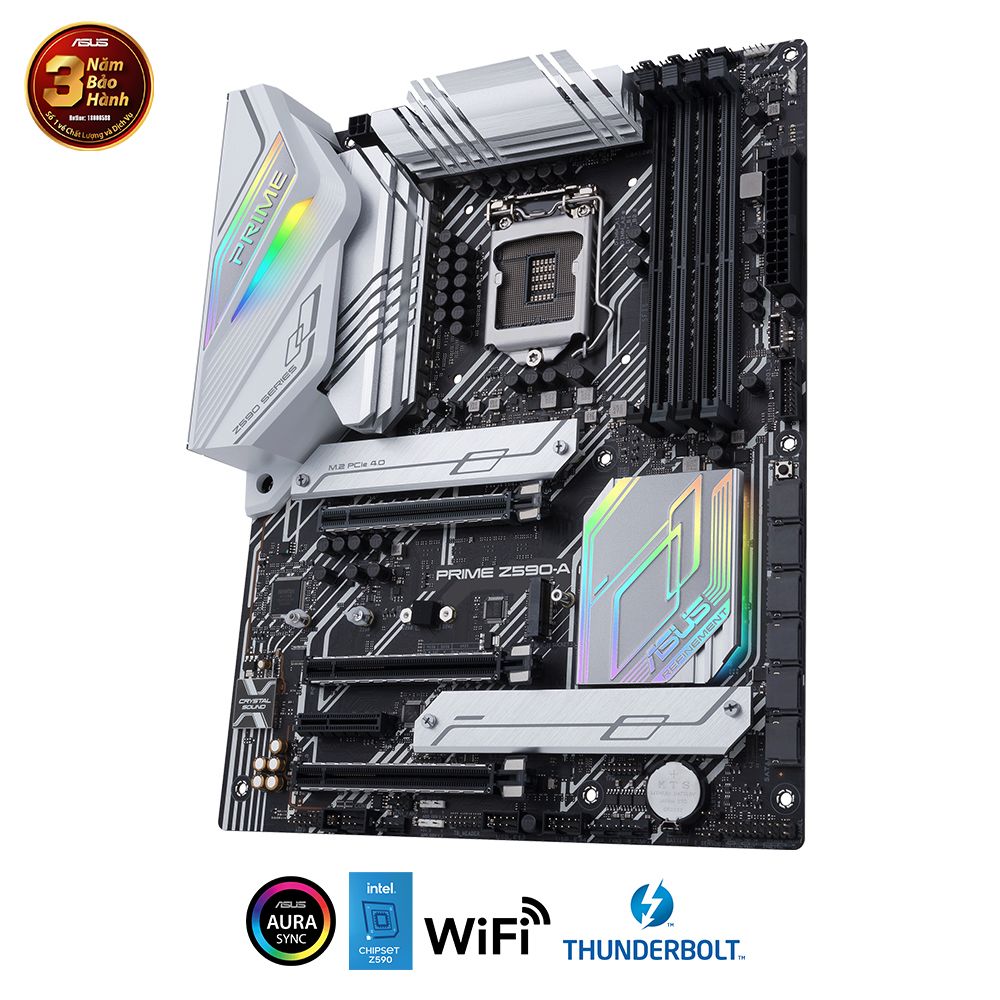

Mainboard ASUS PRIME Z590-A

Thông số kỹ thuật:

Hãng sản xuất:ASUS
Model:Z590-A
CPU
  • Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Refer to www.asus.com for CPU support list.

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

ChipsetIntel® Z590 Chipset




Memory

  • 4 x DIMM, Max. 128GB, DDR4 DDR4
  • 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
  • MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II

10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.

Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.



Graphics

  • 1 x DisplayPort 1.4
  • 1 x HDMITM 2.0

Graphics specifications may vary between CPU types.

Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution

of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates"

Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.

VGA resolution support depends on processors' or graphic cards' resolution.


Expansion Slots

Intel® 11th & 10th Gen Processors
3 x PCIe 4.0/3.0 x16 slots*
- Intel® 11th Core™ processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
1 x PCIe 3.0 x4 slot
  • Supports PCIe bandwidth bifurcation for RAID on CPU function.



Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)****
6 x SATA 6Gb/s portsRaid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.

M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled.

Ethernet1 x Intel® I225-V 2.5Gb Ethernet




USB

Rear USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
  • 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports







Audio

"Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  • Impedance sense for front and rear headphone outputs
  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • Supports up to 32-Bit/192 kHz playback

Audio Features:
  • Power pre-regulator reduces power input noise to ensure consistent performance
  • Rear optical S/PDIF out port
  • Premium Japanese audio capacitors
  • Audio Shielding
  • Dedicated audio PCB layers
  • Audio cover
  • Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

















Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 4-pin VRM_HS Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x CPU Over Voltage jumper
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header




Special Features

ASUS 5X PROTECTION III
  • ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
  • ASUS Enhanced DRAM Overcurrent Protection
  • ASUS ESD Guards
  • ASUS LANGuard
  • ASUS Overvoltage Protection
  • ASUS Stainless-Steel Back I/O

ASUS Q-Design :
  • M.2 Q-Latch
  • ASUS Q-Connector
  • ASUS Q-DIMM
  • ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
  • ASUS Q-Slot

ASUS Thermal Solution:
  • Aluminum M.2 Heatsink
  • Flexible M.2 heatsink

ASUS EZ DIY:
  • Procool
  • Pre-mounted I/O shield
  • ASUS SafeSlot
Software FeaturesASUS Exclusive Software:
Armoury Crate:
  • Aura Creator
  • Aura Sync
  • Two-Way AI Noise Cancelation
  • AI Suite 3
  • 5-way Optimization with AI Overclocking
  • TPU
  • EPU
  • Digi+ VRM
  • Fan Xpert 4
  • Turbo app
  • EZ update
  • AI Charger
  • ASUS CPU-Z
  • ASUS Turbo LAN
  • MyAsus
DTS:X® Ultra
UEFI BIOS:
  • AI Overclocking Guide

ASUS EZ DIY :

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • EZ Tuning Wizard
FlexKey
BIOS256 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE


Accessories

  • Cables: 3 x SATA 6Gb/s cable
  • Miscellaneous: 2 x M.2 Rubber Packages, 1 x Q-connector
  • Installation Media: 1 x Support DVD
  • Documentation: 1 x User manual
Operating SystemWindows 10 64-bit
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Đánh giá chi tiết mainboard ASUS PRIME Z590-A

Một trong những dòng bo mạch chủ được sử dụng chipset mới nhất từ Asus Z590. Đây là một trong những dong main máy tính sử dụng socket LGA 1200 có thể hỗ trợ các dòng CPU thế hệ mới nhất đến từ Intel.

GEARVN.COM Mainboard ASUS PRIME Z590-A



Sở hữu thiết kế có nhiều nét tương đồng với các sản phẩm main của dòng Prime với tông màu chủ đạo vô cùng bắt mắt đen bạc. Cùng với đó là hệ thống tản nhiệt kim loại được bố trí ở các vị trí quan trọng. Hỗ trợ kết nối PCI-e thế hệ 4.0 cho băng thông gấp đôi các thế hệ trước đó.

GEARVN.COM Mainboard ASUS PRIME Z590-A

Các dòng mainboard thế hệ mới nhất đến từ Asus, trong đó có cả Z590-Ađều được tích hợp chíp xử lý thông minh có thể tự động điều chỉnh tốc độ quạt để tối ưu tản nhiệt và nhiều tính năng tự động khác.

GEARVN.COM Mainboard ASUS PRIME Z590-A

Asus còn nâng cấp các hệ thống bo mạch chủ bằng các hiệu năng giảm nhiễu audio 2 chiều tăng khả năng đàm thoại cùng một số trang bị các cổng kết nối như:

  • 16 phase nguồn (14+2) DrMos.
  • USB 3.2 gen 2 Type C.
  • 2 Khe M.2 PCI-e gen 4.
  • Thunderbolt 4 Support.
