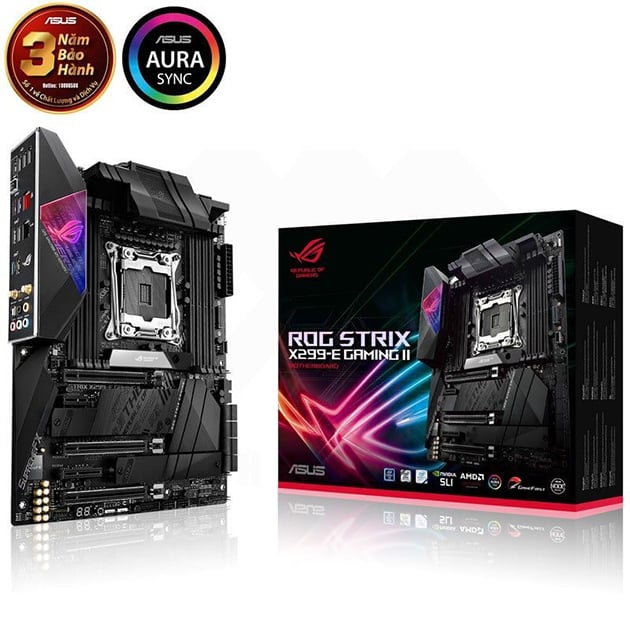

ASUS ROG STRIX X299-E GAMING II

Thông tin chung:

  • Nhà sản xuất: Asus
  • Mã sản phẩm: ROG Strix X299-E Gaming II
  • Bảo hành: 36 tháng


Giá Cũ:12,500,000₫
Giá KM:9,390,000₫

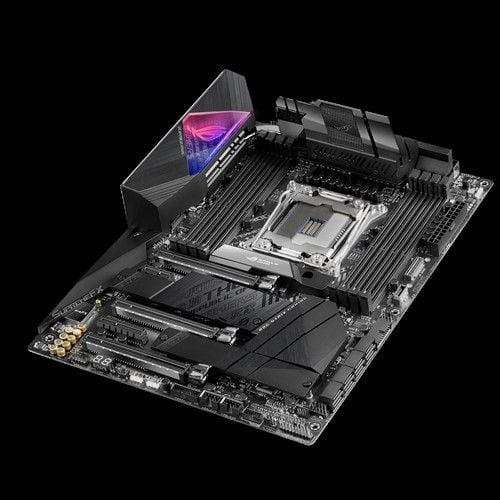

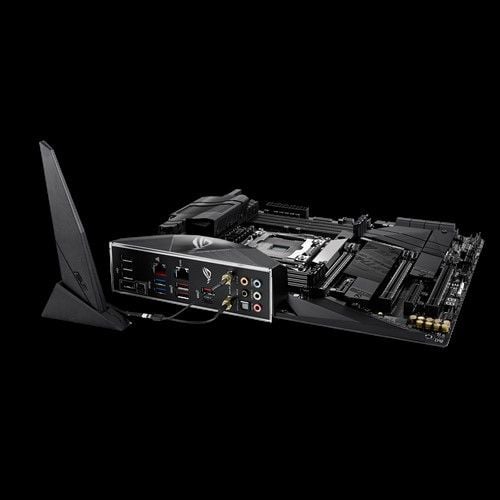

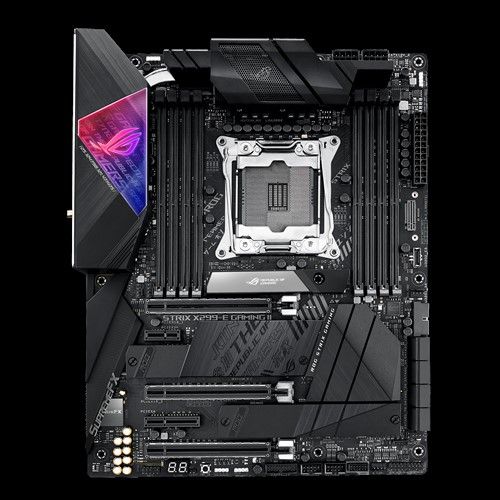

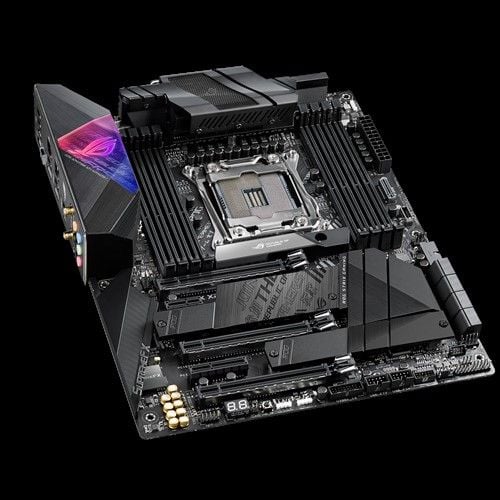

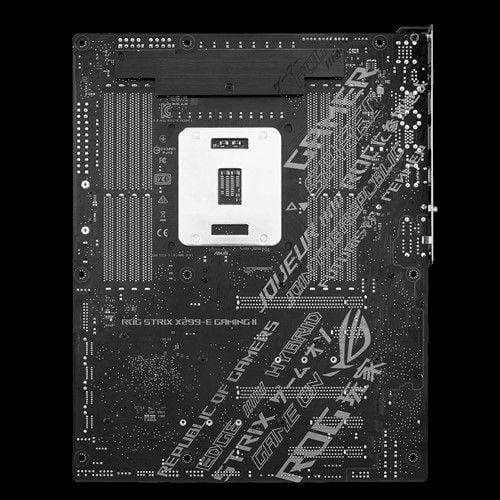

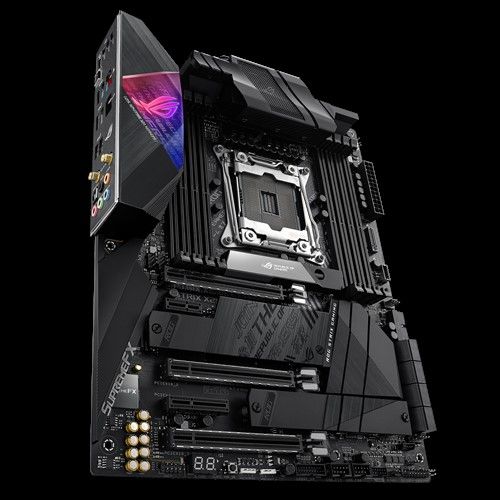

Bo mạch chủ ASUS ROG STRIX X299-E GAMING II

THÔNG SỐ KỸ THUẬT :

CPUIntel® Socket 2066 Core™ X-Series Processors
* Refer to www.asus.com for CPU support list
ChipsetIntel® X299
Memory8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of inpidual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU SupportSupports NVIDIA® 3-Way SLI® Technology
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots1 x PCIe 3.0 x1  *1
3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4)
3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8)
3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4)
(Intel® Core™ i9 10000 X-Series CPU)
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
(Intel® Core™ i7 7000 X-Series CPU)
48-Lane CPU-
44-Lane CPU-
28-Lane CPU-
Intel® X299 Chipset

1 x PCIe 3.0 x4
Storage2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
Intel® Virtual RAID on CPU(VROC)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode),
Intel® Optane™  Memory Ready *3
Intel® Core™ X-Series Processors Family :
Intel® X299 Chipset :

8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
LANIntel® I219V
Realtek® RTL8125-CG 2.5G LAN
Anti-surge LANGuard
ROG GameFirst Technology
Wireless Data NetworkIntel® Wi-Fi 6 AX200
BluetoothBluetooth® 5.0
Audio- High quality120dBSNR stereo playback outputand113dBSNR stereo playback input
- Supports up to 32-Bit/192kHz playback *4
SupremeFX8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
Audio Feature :
- SupremeFX Shielding™ Technology
- DTS® Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III + Sonic Studio Virtual Mixer
USB Ports4 x USB 3.2 Gen 2 (up to 10Gbps)  port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
ASMedia® USB 3.2 Gen 2 controller :
6 x USB 3.2 Gen 1 (up to 5Gbps)  port(s) (2 at back panel, , 4 at mid-board)
Intel® X299 Chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
ROG Exclusive FeaturesUSB BIOS FlashBack™
ROG CPU-Z
Overwolf
ROG Exclusive Software

- GameFirst V
- Overwolf
Special Features- ASUS USB BIOS FlashBack™
- USB BIOS FlashBack™
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
- Onboard Button : Power
OC Design - ASUS PRO Clock II Technology
AI Overclocking
LiveDash OLED
AURA :

- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Armoury Crate
- ASUS NODE: hardware control interface
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

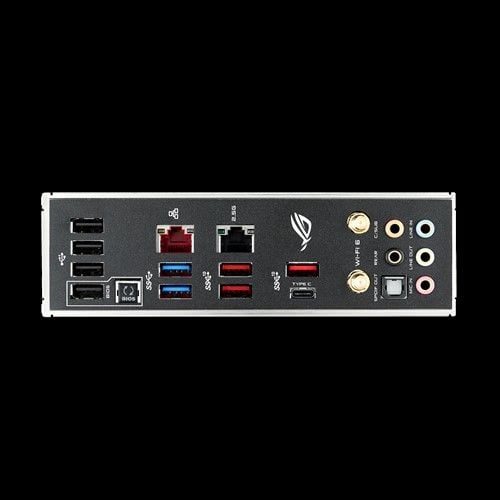

Back I/O Ports4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x USB BIOS FlashBack™ Button(s)
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
1 x Wi-Fi antenna port(s)
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Anti-surge 2.5G LAN (RJ45) port
2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
Internal I/O Ports2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports
1 x CPU_OV jumper
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x VROC_HW_Key
1 x System panel(s) (Q-Connector)
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x M.2 Fan Header
2 x Addressable Gen 2 header(s)
1 x Node Connector(s)

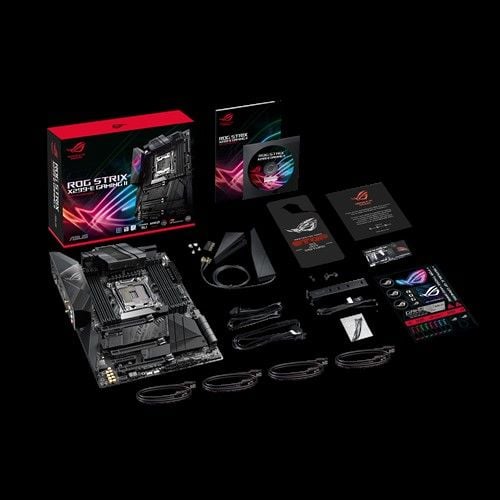

Accessories1 x ROG Door Hanger(s)
1 x Vertical M.2 bracket set
1 x M.2 screw kit (long screw and mount)
User´s manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x Q-Connector
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG Thank you card
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
ManageabilityWOL, PXE
Support DiscDrivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating SystemWindows® 10 64-bit
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note*1 PCIe 3.0 x1 slot share with USB3.2 Gen2 front panel connector.
*2 M.2_2 and M.2_3 support 44-Lane CPU (Intel® Core™ i7 9000 X-Series CPU and above).
*3 The M.2 PCIe mode sources from Intel® X299 Chipset supports Intel® Optane Memory
*4 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio
