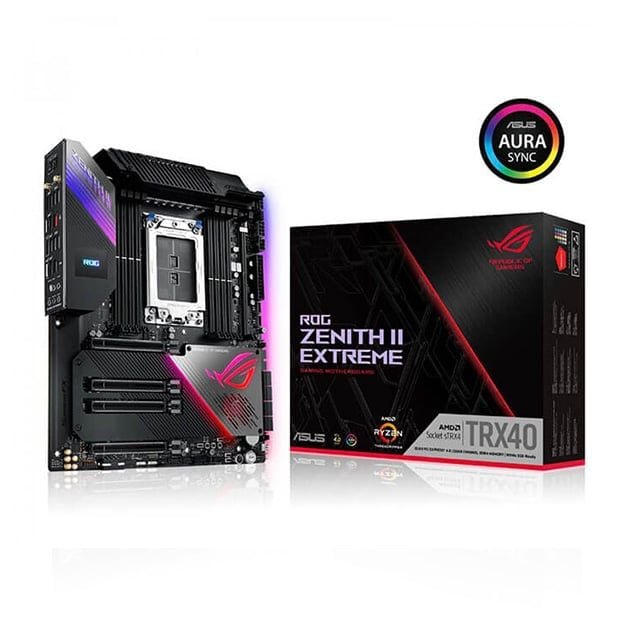

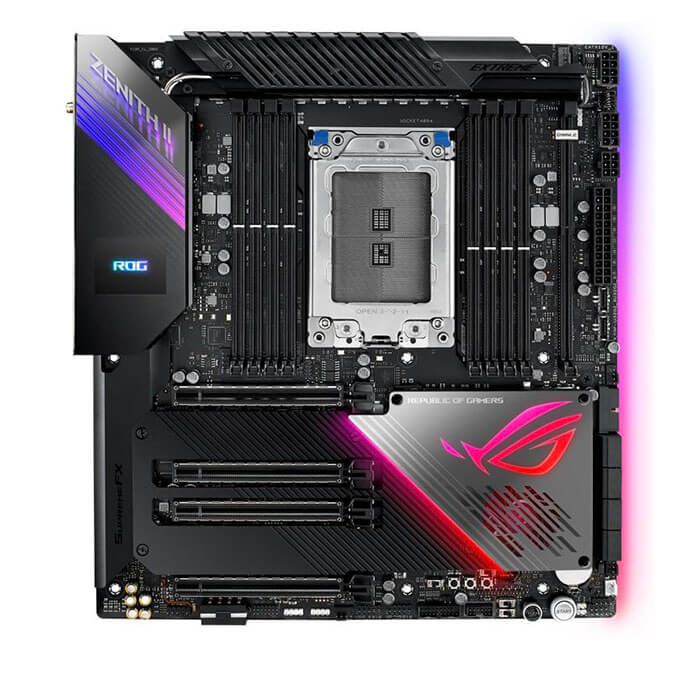

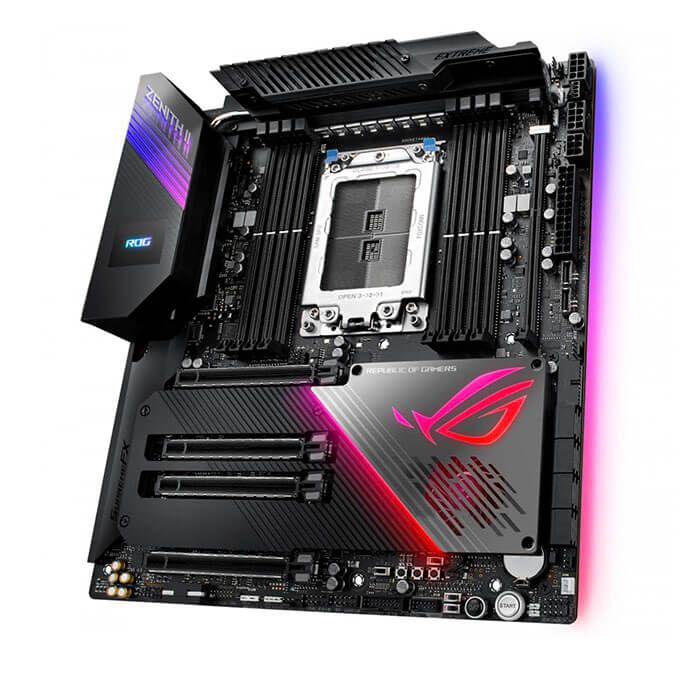

Bo mạch ASUS ROG Zenith II Extreme

0.0 Xem đánh giá

19.290.000₫ ~~19.999.000₫~~ -4%

- Nhà sản xuất : ASUS

- Bảo hành : 36 tháng

- Tình trạng: Mới 100%

Thông tin sản phẩm

Thông số kỹ thuật

CPU	AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Refer to www.asus.com for CPU support list
Chipset	AMD TRX40
Bộ nhớ	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
Bộ nhớ	8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Multi-GPU Support	Supports NVIDIA® 2-Way SLI® Technology
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
Expansion Slots	4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
Storage	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
	1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
	2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1
	3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2
	Support Raid 0, 1, 10
	AMD TRX40 chipset :
	4 x SATA 6Gb/s port(s),
	ASMedia® SATA 6Gb/s controller :
	4 x SATA 6Gb/s port(s),
LAN	Intel® I211-AT, 1 x Gigabit LAN Controller(s)
	Aquantia AQC-107 10G
	Anti-surge LANGuard
	ROG GameFirst V Technology
Wireless Data Network	Intel® Wi-Fi 6 AX200
	Wi-Fi 802.11 ax, Bluetooth® 5.0
	Supports dual band frequency 2.4/5 GHz
	Supports 2x2 MU-MIMO
	Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
	- Impedance sense for front and rear headphone outputs
	- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	- High quality 120 dB SNR stereo playback output 108 dB SNR recording input
	- ESS® ESS9018Q2C
	Audio Feature :
	- SupremeFX Shielding™ Technology
	- Sonic Studio III + Sonic Studio Virtual Mixer
	- DTS® Sound Unbound
	LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
	- Sonic Radar III
USB Ports	3rd Gen AMD Ryzen™ Threadripper™ Processors :
	4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
	AMD TRX40 chipset :
	2 x USB 3.2 Gen 2 front panel connector port(s)
	AMD TRX40 chipset :
	3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C)
	AMD TRX40 chipset :
	3 x USB 2.0 port(s)
	ASMedia® USB 3.2 Gen 1 controller :
	8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)
	ASMedia® USB 3.2 Gen2x2 controller :
	1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)
ROG Exclusive Features	ROG Exclusive Software
	- RAMCache III
	- CPU-Z
	- GameFirst V
	- Sonic Studio III + Sonic Studio Link
	- Sonic Radar III
	- Overwolf
Special Features	ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
	- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
	Gamer's Guardian:
	- DRAM Overcurrent Protection
	- 10K Black Metallic Capacitors
	- DIGI+ VRM
	- SafeSlot
	- ESD Guards on LAN, Audio,and USB ports
	LiveDash OLED 1.77 ”
	AURA :
	- Aura Lighting Control
	- Aura RGB Strip Headers
	- Addressable Gen 2 Header
	ASUS Exclusive Features :
	- AI Suite 3
	- Ai Charger+
	- Pre-mounted I/O Shield
	- ASUS EZ Flash 3
	- ASUS C.P.R.(CPU Parameter Recall)
	- BIOS FlashBack™ Button
	- Clear CMOS Button
	ASUS Q-Design :
	- ASUS Q-Code
	- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
	- ASUS Q-Slot
	- ASUS Q-DIMM
	- ASUS Q-Connector
	Digi+VRM
	MemOK! II
	Armoury Crate

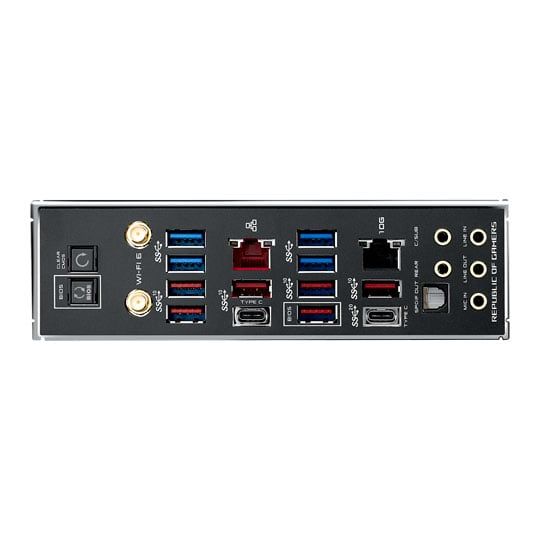

Back I/O Ports	1 x LAN (RJ45) port(s)
	1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C)
	4 x USB 3.2 Gen 1 blue
	5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C)
	1 x Optical S/PDIF out
	1 x Clear CMOS button(s)
	5 x LED-illuminated audio jacks
	1 x Aquantia AQC-107 10G LAN port
	1 x USB BIOS FlashBack™ Button(s)
Internal I/O Ports	2 x Aura RGB Strip Header
	2 x Addressable Gen 2 header(s)
	2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
	2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode)
	1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode)
	1 x TPM header
	8 x SATA 6Gb/s connector(s)
	1 x CPU Fan connector(s)
	1 x CPU OPT Fan connector(s)
	2 x Chassis Fan connector(s)
	1 x H_AMP fan connector
	2 x W_PUMP+ connector
	1 x WB_SENSOR
	1 x 6-pin EATX 12 V Power connector
	1 x 24-pin EATX Power connector(s)
	2 x 8-pin EATX 12V Power connectors
	1 x 4-pin EZ_PLUG Power connector(s)
	1 x Front panel audio connector(s) (AAFP)
	7 x ProbeIt Measurement Points
	1 x BIOS Switch button(s)
	1 x Node Connector(s)
	1 x LN2 Mode jumper(s)
	1 x Safe Boot button
	1 x ReTry button
	1 x W_IN header
	1 x W_OUT header
	1 x W_FLOW header
	2 x USB 3.2 Gen 2 front panel connector
	1 x Speaker connector
	1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
	1 x RSVD Switch
	1 x Start button
	1 x FlexKey button
	1 x FS Mode switch
	1 x M.2_3 cold storage Switch
	1 x Chipset Fan Header
	1 x VRM_HS_FAN Header
	1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Hệ điều hành	Support for Windows 10 64-bit
Kích Thước	Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )
