| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asus |

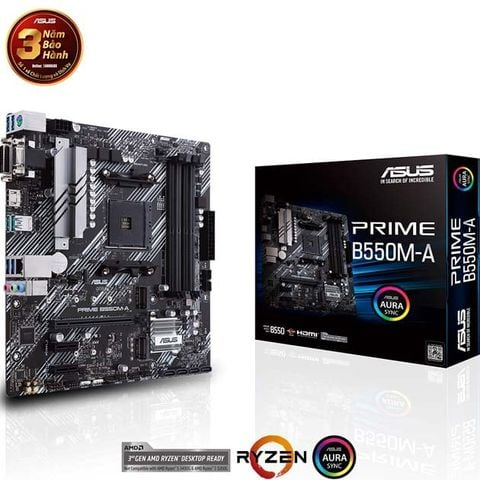

| Model | Prime B550M-A (WIFI) |
| Socket | AM4 |
| Hỗ trợ CPU | Supports AMD 3nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ Processors |
| Chipset | AMD B550 |
| Hỗ trợ RAM | 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
ECC Memory (ECC mode) support varies by CPU. |
| Card đồ họa | VGA onboard |
| Âm thanh | Realtek® ALC887 codec |
| Card mạng | Realtek RTL8111H 1Gb Ethernet
ntel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Khe cắm trong | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 |
| Cổng giao tiếp ngoài | 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x ASUS Wi-Fi Module |
| Kích thước | ATX |
