Bo mạch chủ ASUS PRIME B760M-K D4

Xem đánh giá

2.590.000₫ ~~2.990.000₫~~ -13%

LIÊN HỆ NGAYGợi ý sản phẩm thay thế phù hợp

Showroom HCM

📍78-80-82 Hoàng Hoa Thám, Phường Bảy Hiền, TP.HCM

📍 905 Kha Vạn Cân, Phường Linh Tây, TP.HCM

📍 1081-1083 Trần Hưng Đạo, Phường An Đông, TP.HCM

📍63 Nguyễn Cửu Vân, Phường Gia Định, TP.HCM

New✨

Showroom HN

📍 162-164 Thái Hà, Phường Đống Đa, Hà Nội

Thông tin sản phẩm

Thông số kỹ thuật

Model	PRIME B760M-K DDR4
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	4 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots
Ổ cứng hỗ trợ	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

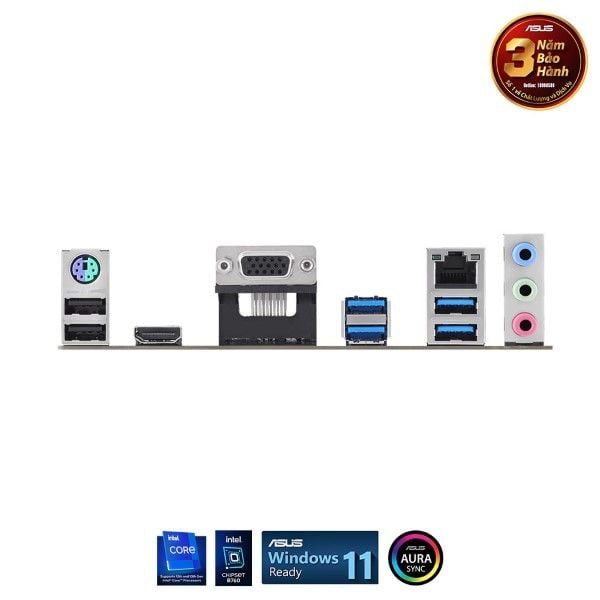

Cổng kết nối (Back Panel)	4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	1 x Realtek 2.5Gb Ethernet
Kích cỡ	mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
