| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 &8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate(speed), and number of DRAM modules vary depending on the CPU and memoryconfiguration, for more information please refer to CPU/Memory Support listunder the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memoryproducts available on the market.
** Non-ECC, un-buffered DDR5 memorysupports On-Die ECC function. |
| Graphics | 1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary betweenCPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends onprocessors' or graphic cards' resolution. |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4mode)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the deviceinstalled, please refer to https://www.asus.com/support/download-center/ forthe list of supported peripherals. |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Notsupports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors. |
| RAID Support | AMD RAIDXpert2 Technology*
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types. |
| Ethernet | 1 x Realtek 5Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For
Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidthregulatory may vary between countries.
*** The Bluetooth® version may vary, pleaserefer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 14 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USBType-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USBType-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max.5V/3A
** USB Type-C® power delivery output: 5V/9Vmax. 3A, 12V max 2.5A, 15V max. 2.0A |
| Audio | Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and rearheadphone outputs
- Internal audio Amplifier to enhance thehighest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHzplayback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel doesnot support spatial audio. If you wish to use spatial audio, make sure toconnect your audio output device to the audio jack on the front panel of yourchassis or use a USB interface audio device. |

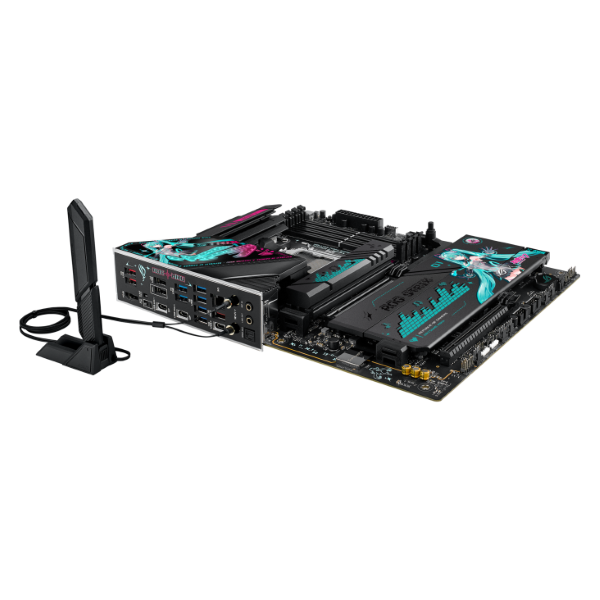

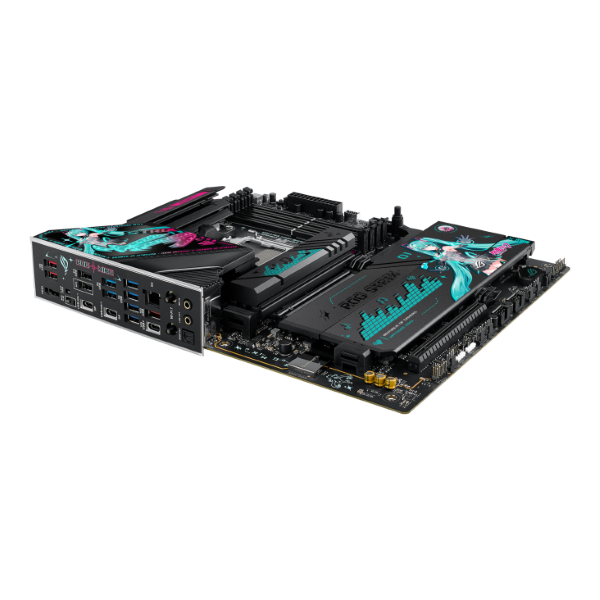

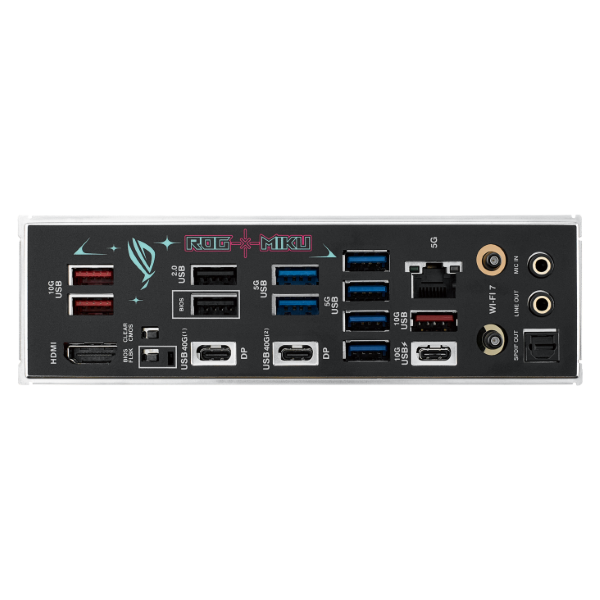

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports(2 x USB Type-C®)
4 x USB 10Gbps ports (3 x Type-A + 1 x USBType-C® with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USBType-C®)
1 x USB 5Gbps header supports 2 additionalUSB 5Gbps ports
2 x USB 2.0 headers support 4 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header |
| Special Features | Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers |
| Software Features | ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
* For more software features, please visitthe asus support site or refer to www.asus.com/support for additionalinformation.
** For detailed information on thesupported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

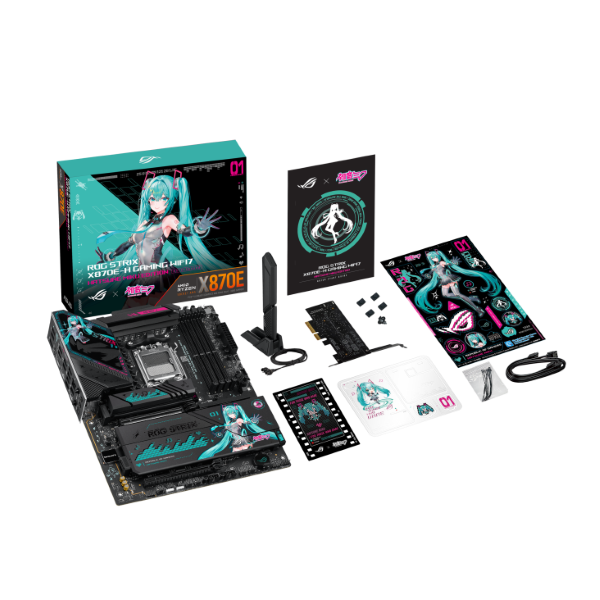

| Accessories | Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ASUS PCIe to Front USB Card (supports 2 x USB 5Gbps Type-A + 1 x USB 10Gbps Type-C ports)
1 x PHONE STAND HATSUNE MIKU EDITION
1 x THANK YOU CARD HATSUNE MIKU EDITION
1 x STICKER HATSUNE MIKU EDITION
4 x M.2 rubbers
Documentation
1 x Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
