GIGABYTE Z490 AORUS MASTER (rev. 1.0)

Hãng sản xuất: GIGABYTE

Tình trạng: Mới 100%

Bảo hành: 36 tháng

🎁 Gói 1:

- Tặng ngay 1 chuột Logitech G102 White RGB trị giá 540.000VNĐ

🎁 Gói 2: Gói giảm giá hấp dẫn khi mua online.

- Nhập mã coupon: 350K để giảm trực tiếp 350.000VNĐ khi mua hàng tại GearVN giá chỉ còn 9.240.000VNĐ.

(KHÔNG ÁP DỤNG VỚI CÁC CTKM KHÁC)

Giá Cũ:10,190,000₫
Giá KM:9,590,000₫

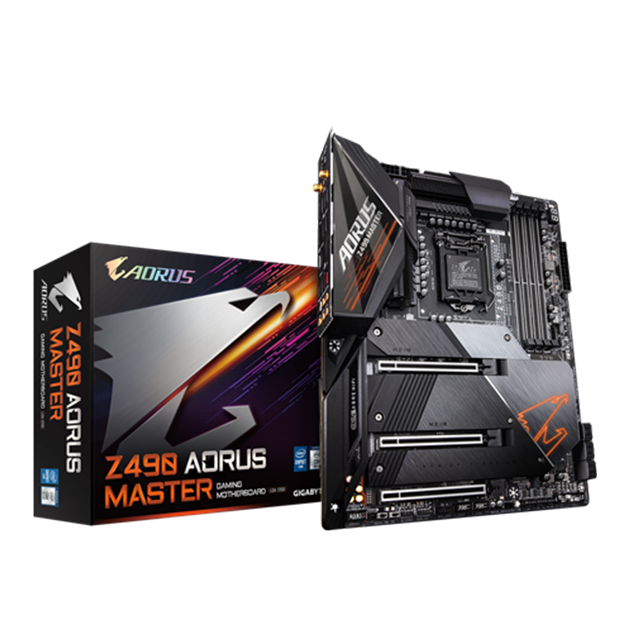

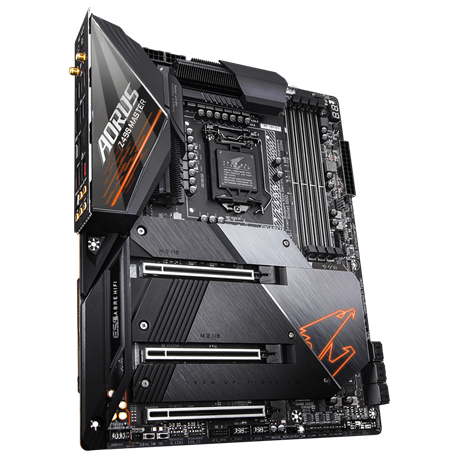

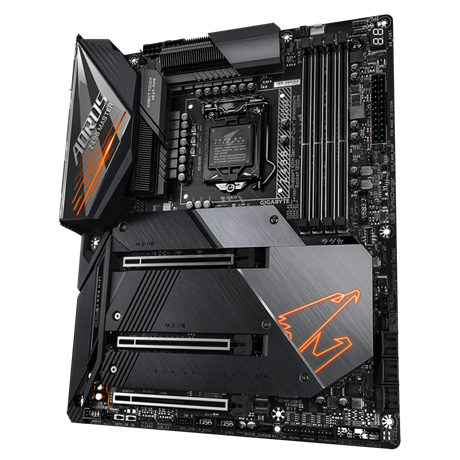

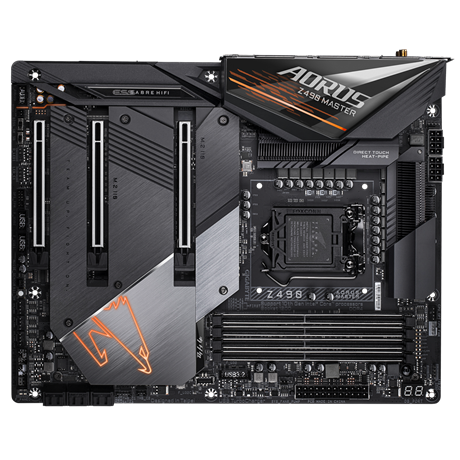

Main máy tính GIGABYTE Z490 AORUS MASTER (rev. 1.0)

Main máy tính Gigabyte Z490 AORUS MASTER là thế hệ chipset mới nhất của Intel dành cho các CPU Core i thế hệ 10 như Core i9-10900K, i7-10700K, Với việc nâng cấp lên 10 nhân / 20 luồng ở mã cao cấp nhất ( 10900K ), yêu cầu một bo mạch chủ đủ tốt để có thể hoạt động ổn định. Gigabyte đã cho ra mắt hàng loạt các bo mạch chủ thế hệ mới với những công nghệ định cao đủ để đáp ứng tốt nhất từ sử dụng cơ bản cho tới ép xung mạnh mẽ

Thông số kỹ thuật:

CPU
  1. Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
  2. L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

ChipsetIntel Z490 Express Chipset
Memory
  1. Intel Core™ i9/i7 processors:
    Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules
  2. Intel Core™ i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Audio
  1. Realtek ALC1220-VB codec
    * The front panel line out jack supports DSD audio.
  2. ESS ES9118EQ DAC chip
  3. Support for DTS:X Ultra
  4. High Definition Audio
  5. 2/4/5.1/7.1-channel
  6. Support for S/PDIF Out
LANIntel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication moduleIntel Wi-Fi 6 AX201
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.0
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA Quad-GPU SLI™ and 2-Way NVIDIA SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
  3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane™ Memory Ready
USBChipset:
  1. 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 3 x M.2 Socket 3 connectors
  10. 6 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x noise detection header
  17. 2 x Thunderbolt™ add-in card connectors
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  19. 1 x power button
  20. 1 x reset button
  21. 2 x temperature sensor headers
  22. 1 x Clear CMOS jumper
  23. 2 x BIOS switches

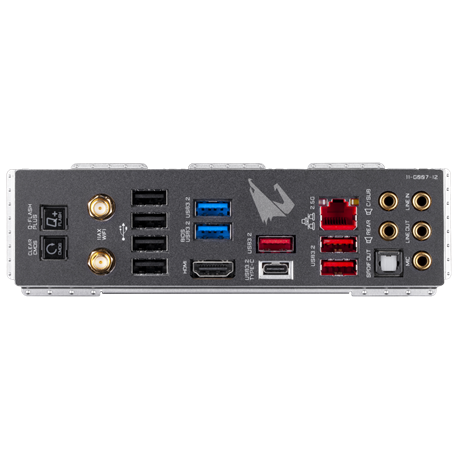

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x Clear CMOS button
  3. 2 x SMA antenna connectors (2T2R)
  4. 1 x HDMI port
  5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  6. 3 x USB 3.2 Gen 2 Type-A ports (red)
  7. 2 x USB 3.2 Gen 1 ports
  8. 4 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 1 x optical S/PDIF Out connector
  11. 5 x audio jacks
I/O ControlleriTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  8. Noise detection
BIOS
  1. 2 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    RGB Fusion
    Smart Backup
    System Information Viewer
    USB TurboCharger
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating SystemSupport for Windows 10 64-bit
Form FactorATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
