GIGABYTE Z490 VISION G (rev. 1.0)

Hãng sản xuất: GIGABYTE

Tình trạng: Mới 100%

Bảo hành: 36 tháng

Giá: Liên hệ


Main máy tính GIGABYTE Z490 VISION G (rev. 1.0)

Main máy tính GIGABYTE chính thức ra mắt dòng bo mạch chủ Z490 mới của mình với hỗ trợ những công nghệ mới nhất, khai thác đầy đủ tiềm năng của dòng CPU Intel Core thế hệ thứ 10. Trong số những bo mạch chủ mới có chiếc GIGABYTE Z490 Vision G sở hữu thiết kế cực kỳ đẹp mắt với tông màu trắng chủ đạo, kết hợp với màu đen và hoà vào đó là những điểm nhấn kim loại từ lớp vỏ bảo vệ vừa gia tăng vẻ đẹp, vừa gia tăng khả năng tản nhiệt của sản phẩm.

Thông số kỹ thuật main máy tính GIGABYTE Z490 VISION G (rev. 1.0) :

CPU
  1. Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
ChipsetIntel Z490 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules
    * To support 3200 MHz, you must use XMP memory.
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
Audio
  1. Realtek ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LANIntel 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  4. 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  • Support for NVIDIA Quad-GPU SLI™ and 2-Way NVIDIA SLI™ technologies
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Intel Optane™ Memory Ready
USB
  1. 3 x USB 3.2 Gen 2 ports on the back panel
  2. 2 x USB Type-C™ ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
  3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  4. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 6 x SATA 6Gb/s connectors
  10. 2 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x S/PDIF Out header
  14. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
  18. 2 x Thunderbolt™ add-in card connectors
  19. 1 x serial port header
  20. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 2 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 4 x USB 3.2 Gen 1 ports
  4. 1 x DisplayPort
  5. 1 x HDMI port
  6. 3 x USB 3.2 Gen 2 Type-A ports
  7. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  8. 1 x RJ-45 port
  9. 6 x audio jacks
I/O ControlleriTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton Internet Security (OEM version)
  2. cFosSpeed
Operating SystemSupport for Windows 10 64-bit
Form FactorATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

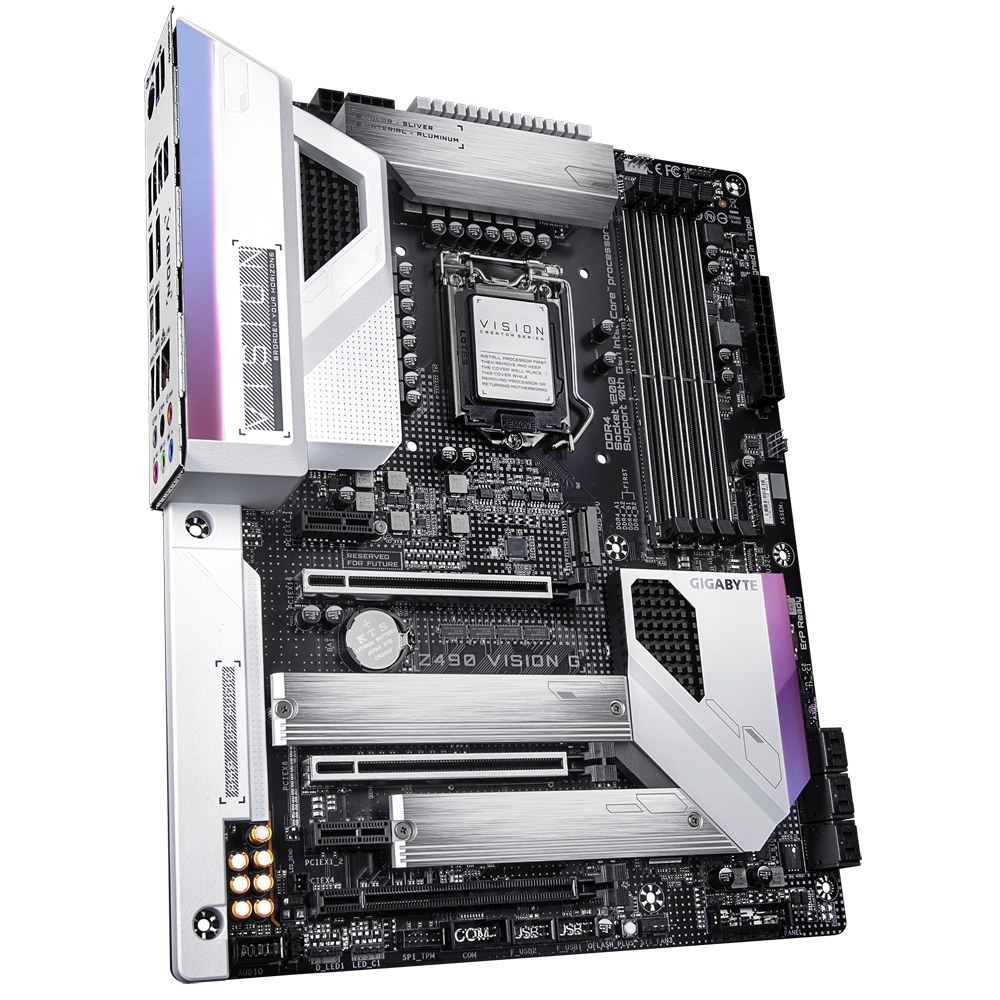

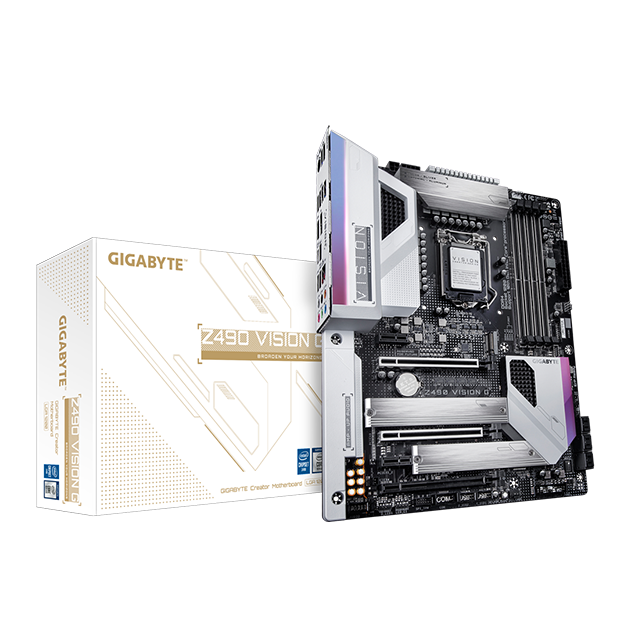

Hình ảnh chi tiết main máy tính GIGABYTE Z490 VISION G (rev. 1.0)
