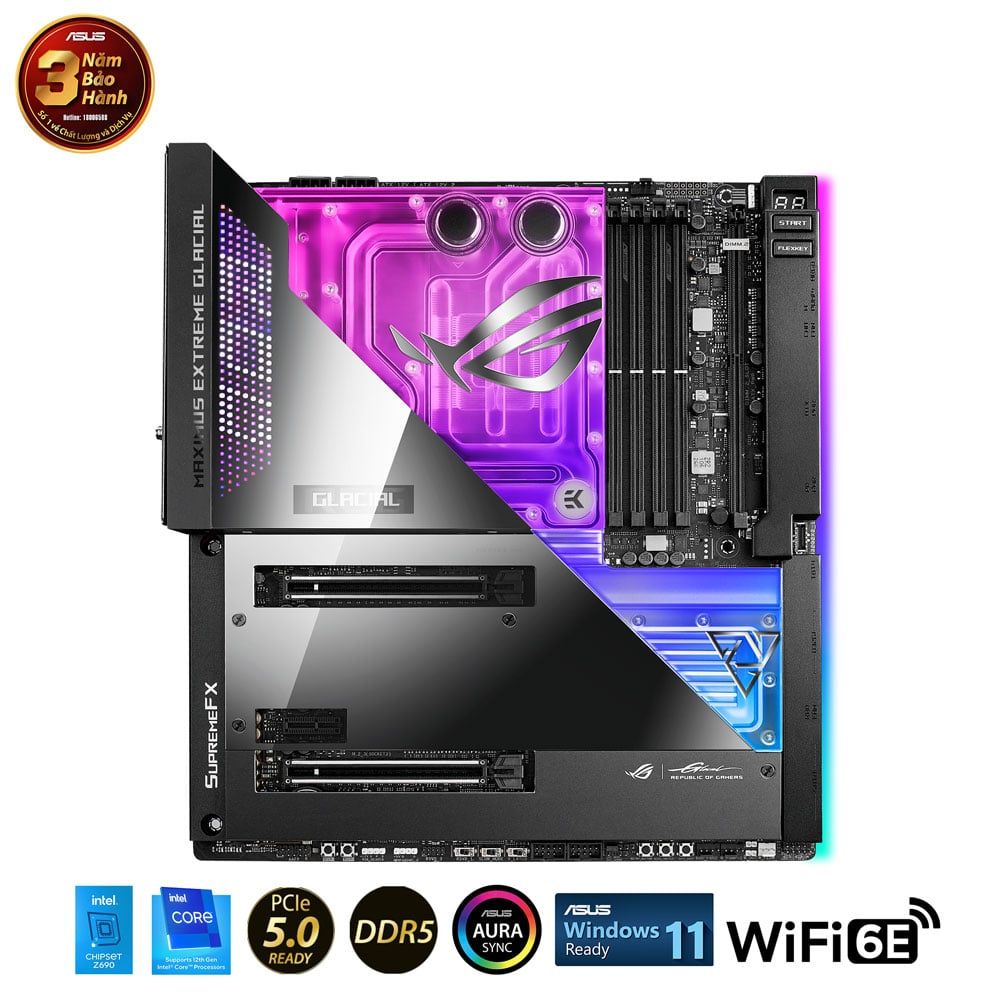

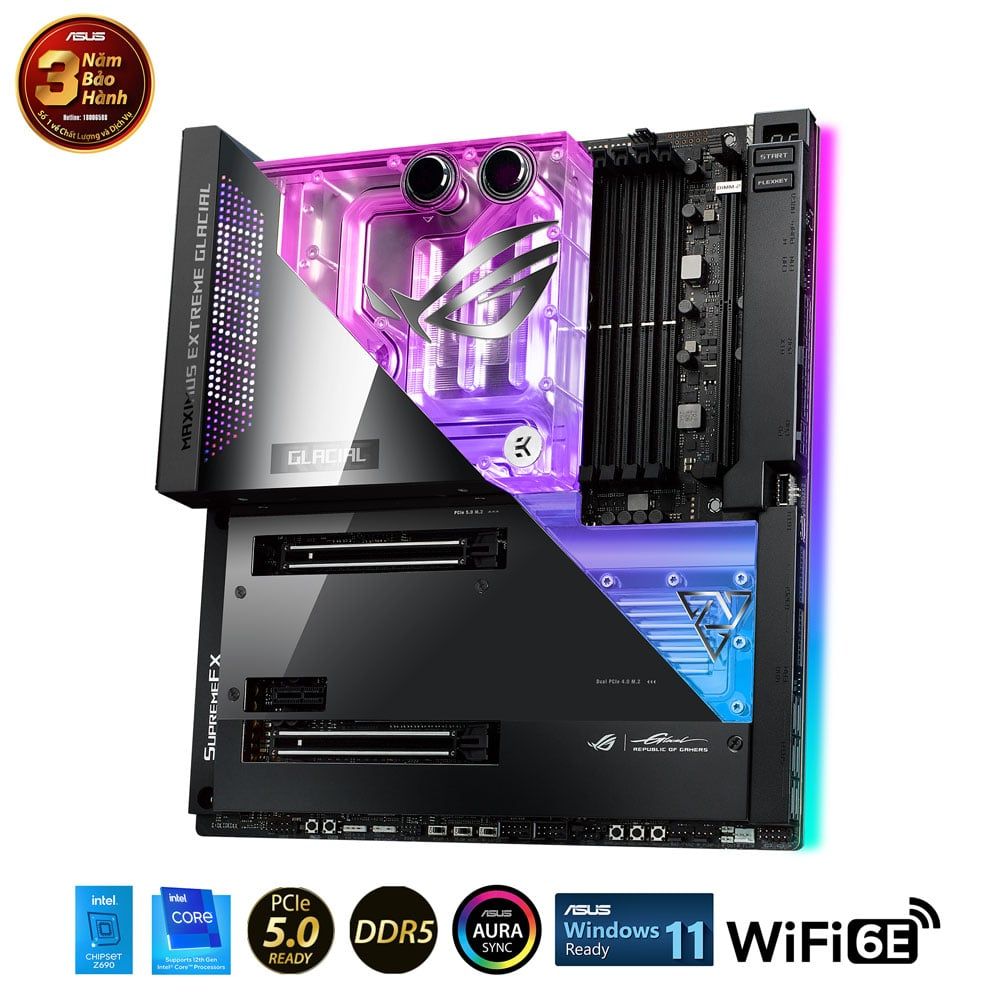

| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| Graphics | * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
***Support 4K@60Hz as specified in HDMI® 2.1. |
| Expansion Slots | Intel® 12th Gen Processors*- 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
Intel® Z690 Chipset**** Please check PCIe bifurcation table in support site.
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
*** Support Intel® Optane Memory H Series on PCH-attached PCIe slot. |
| Storage | Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 12th Gen Processors- M.2_1 slot (Key M), type 2242/2260/2280/22110***
- Intel® 12th Gen processors support PCIe 5.0 x4 mode. - M.2_2 slot (Key M), type 2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
- DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 6 x SATA 6Gb/s ports****
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet
1 x Marvell® 10Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth | Intel® Wi-Fi 6E |
| USB | Rear USB: Total 10 ports
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x Thunderbolt™ 4 connector (1 x USB Type-C®)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
|
| Back Panel I/O Ports | 1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x HDMI® port
1 x ASUS Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related- 2 x 4-pin Chassis Fan headers
- 2 x 4-pin Radiator Fan headers
- 2 x W_PUMP+ headers
- 1 x WB_SENSOR header
- 1 x 2-pin Water In header
- 1 x 2-pin Water Out header
- 1 x 3-pin Water Flow header
Power related - 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connector
- 1 x 6-pin PCIe Graphics Card connector
Storage related - 3 x M.2 slots (Key M)
- 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
USB - 1 x Intel® Thunderbolt™ 4 port (USB Type-C®)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous - 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
- 1 x Addressable Gen 2 header
- 1 x AURA RGB header
- 1 x WB_ADD header
- 1 x BIOS Switch button
- 2 x BCLK button
- 1 x FlexKey button
- 1 x Front Panel Audio header (AAFP)
- 1 x LN2 Mode jumper
- 1 x Osc sence header
- 12 x ProbeIt Measurement Points
- 1 x ReTry button
- 1 x RSVD switch
- 1 x RSVD header
- 1 x Safe Boot button
- 1 x Slow Mode switch
- 1 x Start button
- 1 x V_Latch switch
- 1 x 10-1 pin System Panel header
- 1 x Thermal Sensor header
|
| Special Features | Extreme OC Kit- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design - M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution- M.2 heatsink backplate
- M.2 heatsink
- Steel backplate
- VRM heatsink design
ASUS EZ DIY- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync- ROG AURA sync backplate
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Dual BIOS
OLED 2"
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
ASUS HYDRANODE- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)
* Visit ASUS Website for the latest compatibility list. |
| Software Features | ROG Exclusive Software- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate- AIDA64 Extreme (1 year full version)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- OLED Display
- AniMe MatrixTM LED Display
AI Suite 3
- Easy Optimization with AI Overclocking
TPU
EPU
DIGI+ Power Control
Turbo app
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY - ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86 |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables- 1 x 1-to-3 ARGB splitter cable
- 1 x 1-to-2 ARGB splitter cable
- 2 x 1-to-4 fan splitter cables
- 1 x RGB extension cable
- 3 x ROG weave SATA 6G cables
- 1 x 3-in-1 Thermistor cables pack
ROG Fan Controller- 1 x ROG Fan Controller
- 1 x Fan EXT PWR cable
- 1 x ARGB input cable
- 1 x USB input cable
- 1 x ROG Fan Controller 3M Mounting tape
- 1 x Fan Controller manual
ROG DIMM.2 with Heatsink- 1 x ROG DIMM.2 with heatsink
- 1 x M.2 pad for ROG DIMM.2
- 2 x M.2 screw package for ROG DIMM.2
Additional Cooling Kit- 1 x Monoblock
- 3 x Screw package for monoblock
- 1 x Thermal pad for monoblock
- 1 x Fittings for monoblock
- 1 x M.2 heatsink
Miscellaneous- 1 x ASUS Wi-Fi moving antennas
- 1 x M.2 SSD screw package
- 1 x Q-connector
- 1 x ROG CLAVIS DAC
- 1 x ROG graphics card holder
- 1 x ROG key chain
- 1 x ROG logo plate stickers
- 1 x ROG screwdriver
- 1 x ROG stickers
- 1 x ROG thank you card
Installation Media- 1 x USB drive with utilities and drivers
Documentation |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | EATX
30.5cm x 27.7cm |
