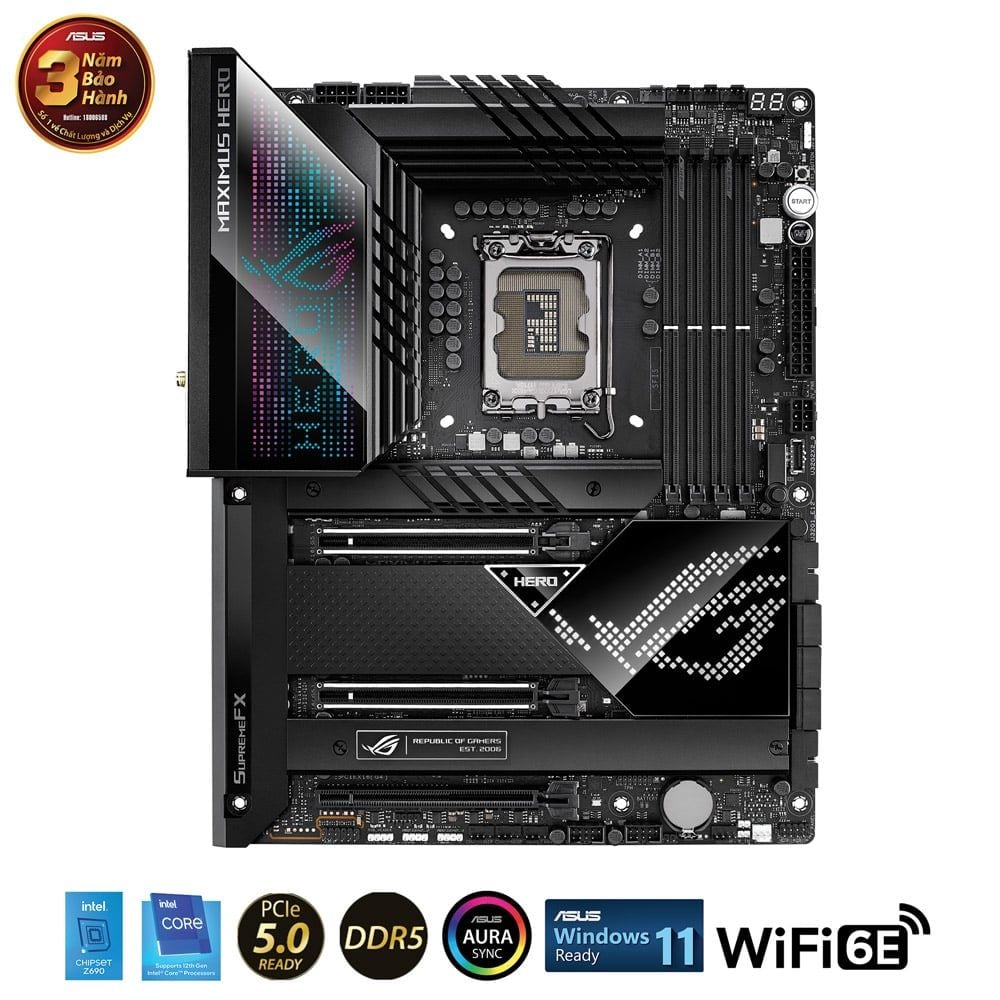

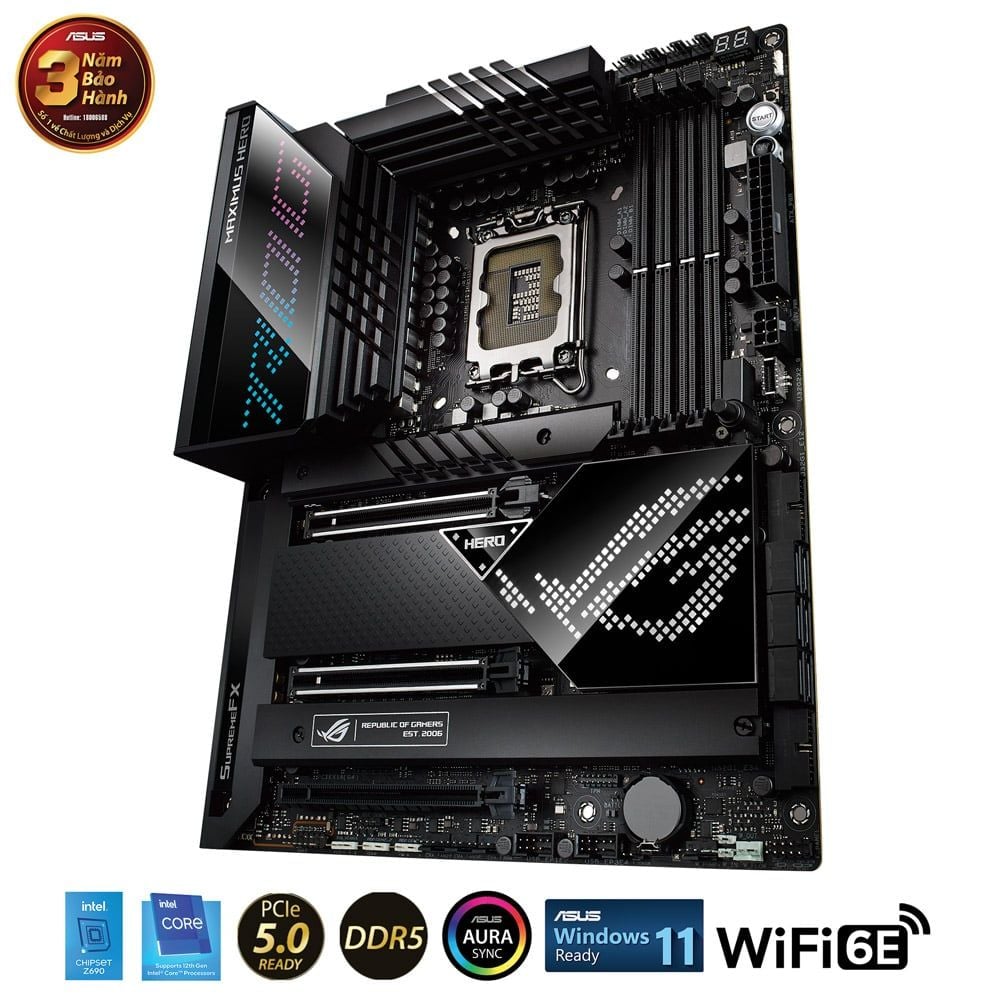

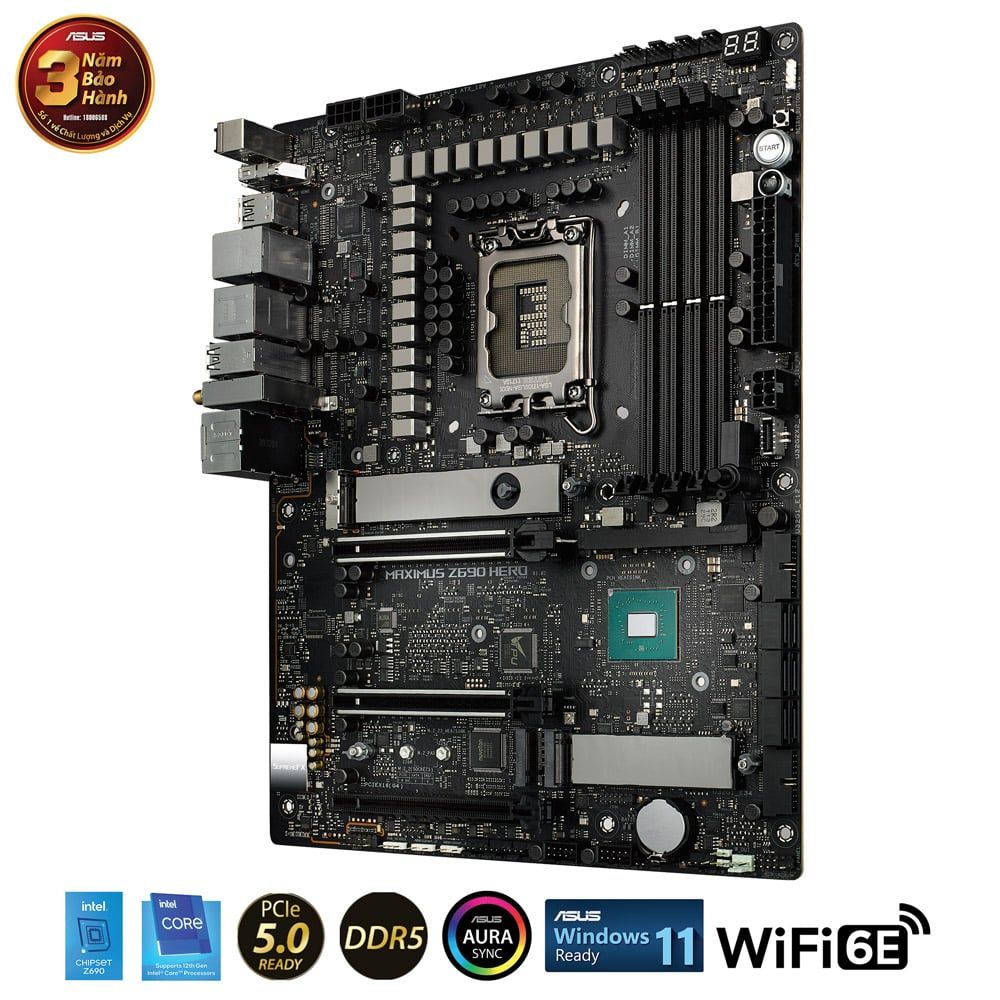

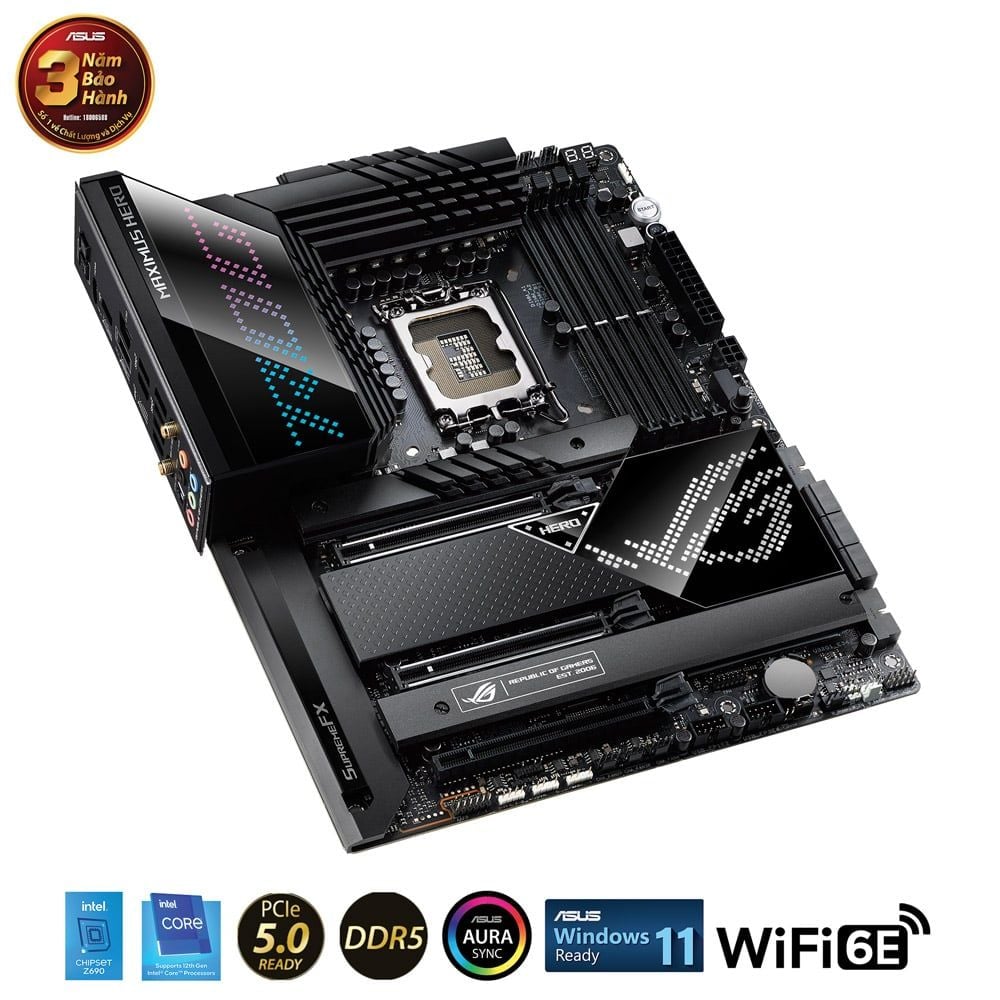

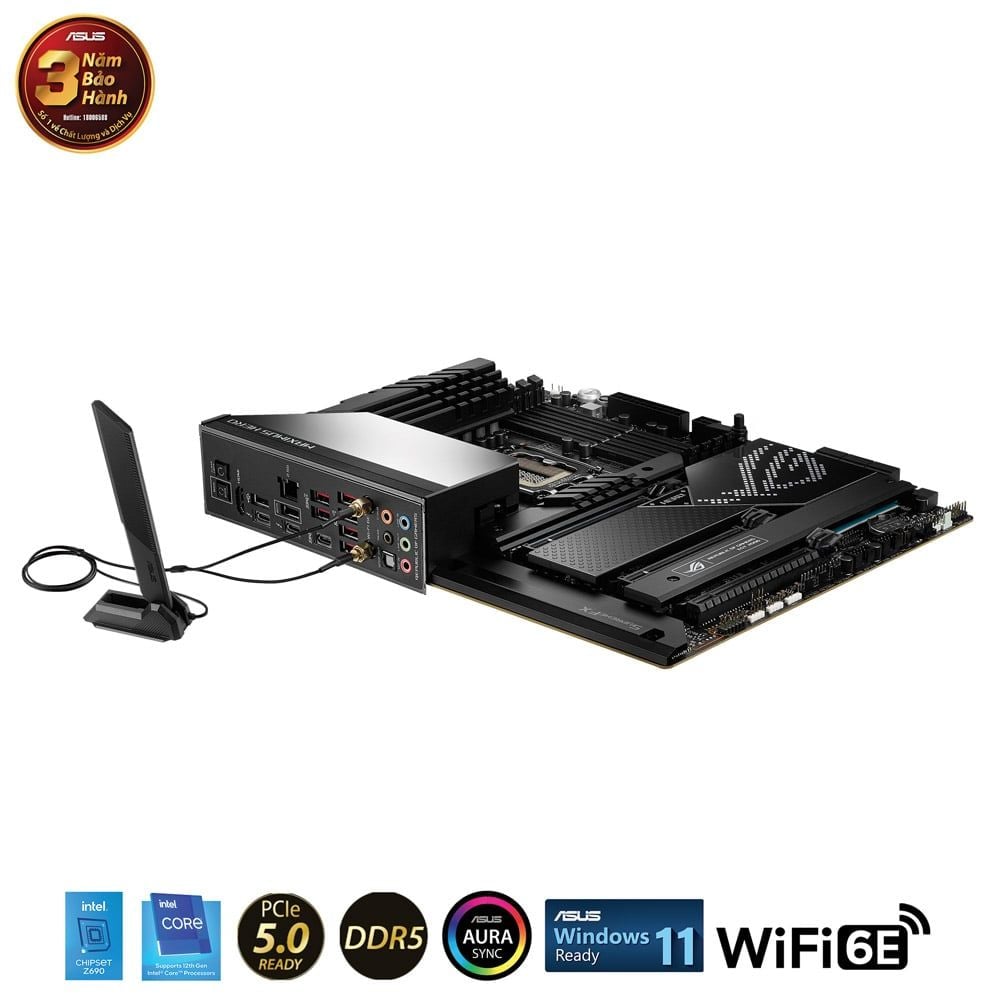

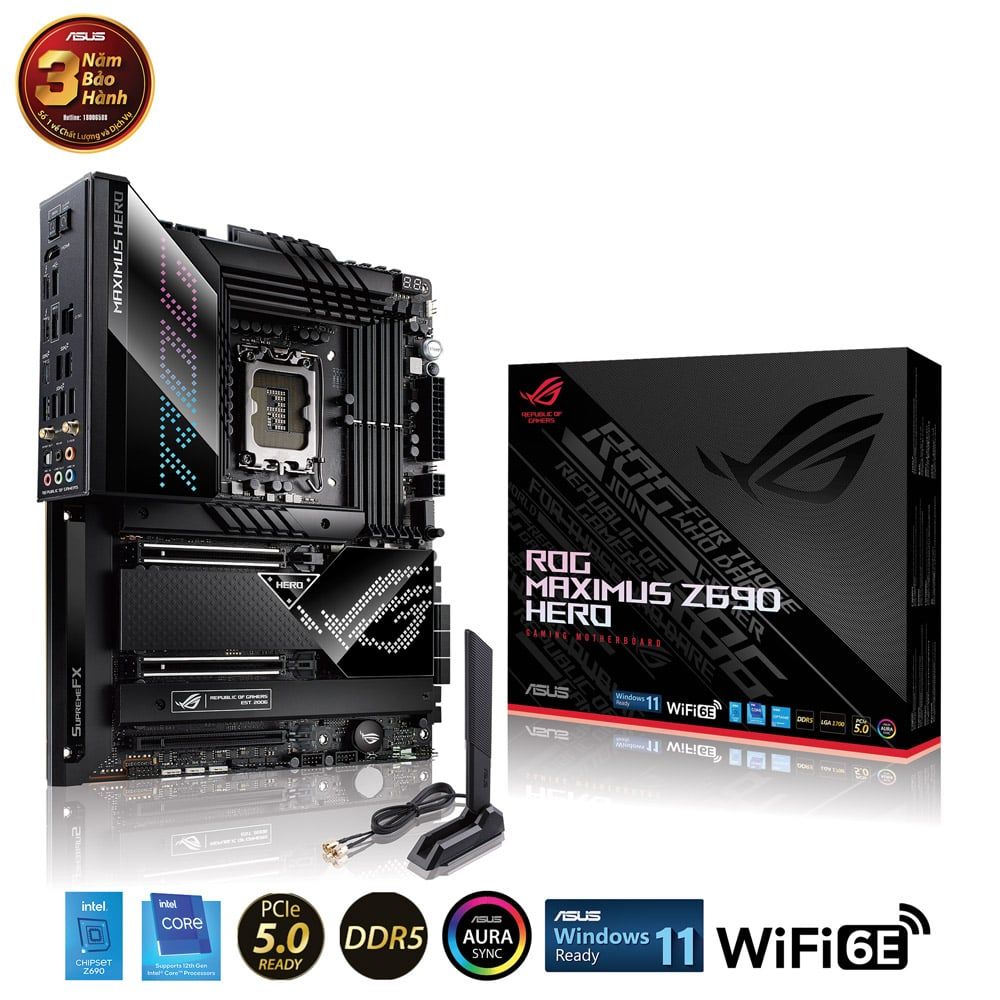

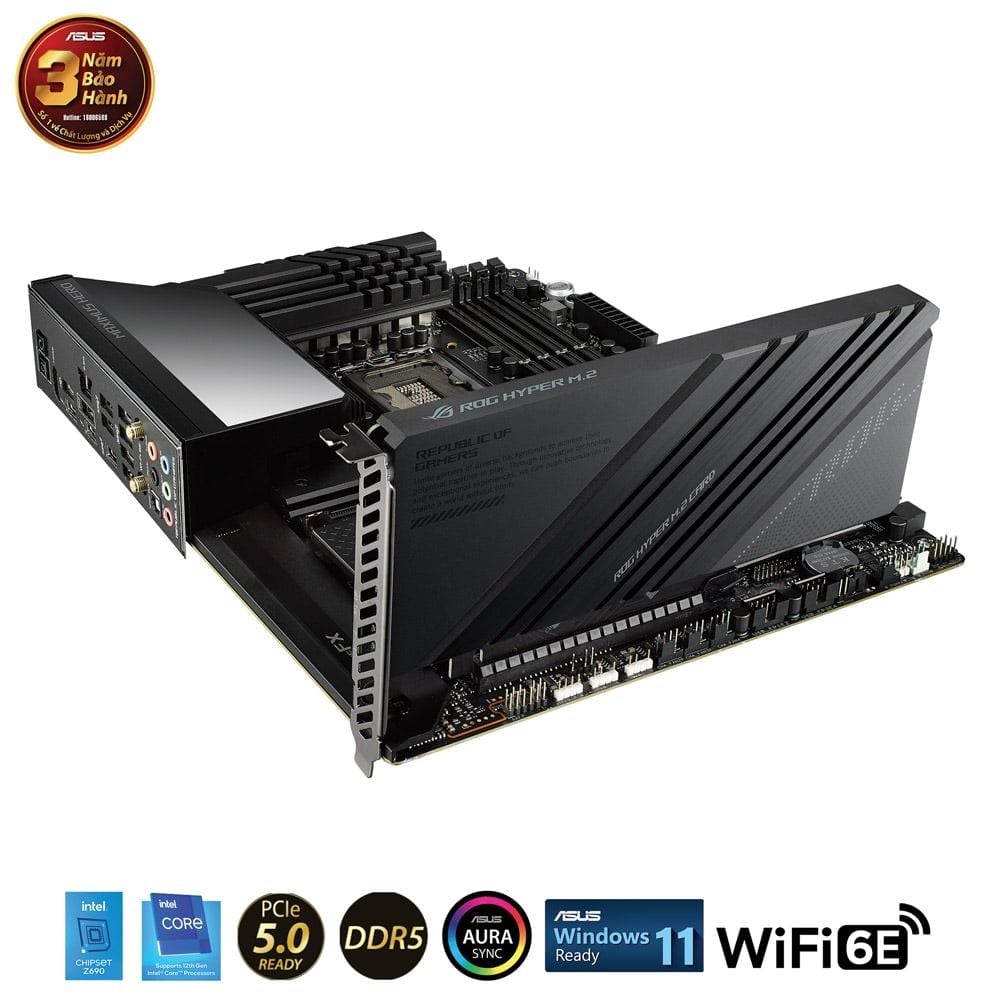

Bo mạch chủ ASUS ROG MAXIMUS Z690 HERO (DDR5)

Mã sản phẩm: MB-ASUS-Z690-ROG-MAXIMUS-HERO-D5
15.990.000₫ 17.990.000₫ -11%
Số lượng:

Quà tặng khuyến mãi

Thông tin chung:

  • Hãng sản xuất: ASUS
  • Bảo hành: 36 Tháng

Khuyến mãi

Gợi ý mua kèm

Thông tin sản phẩm

THÔNG SỐ KĨ THUẬT :

CPUIntel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetZ690
Khe RAM

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)

Cổng xuất hình1 x HDMI® port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI 2.1.
Khe PCIIntel® 12th Gen Processors*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel® Z690 Chipset***
1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
* Please check PCIe bifurcation table in Chapter 1.
** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
*** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Lưu trữSupports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***
- Intel® 12th Gen processors support PCIe 5.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****
6 x SATA 6Gb/s ports*****
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
*** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
**** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports
Ethernet1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & BluetoothIntel® Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USBRear USB:
Total 11 ports
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB:
Total 9 ports
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Drive âm thanhROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features:
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

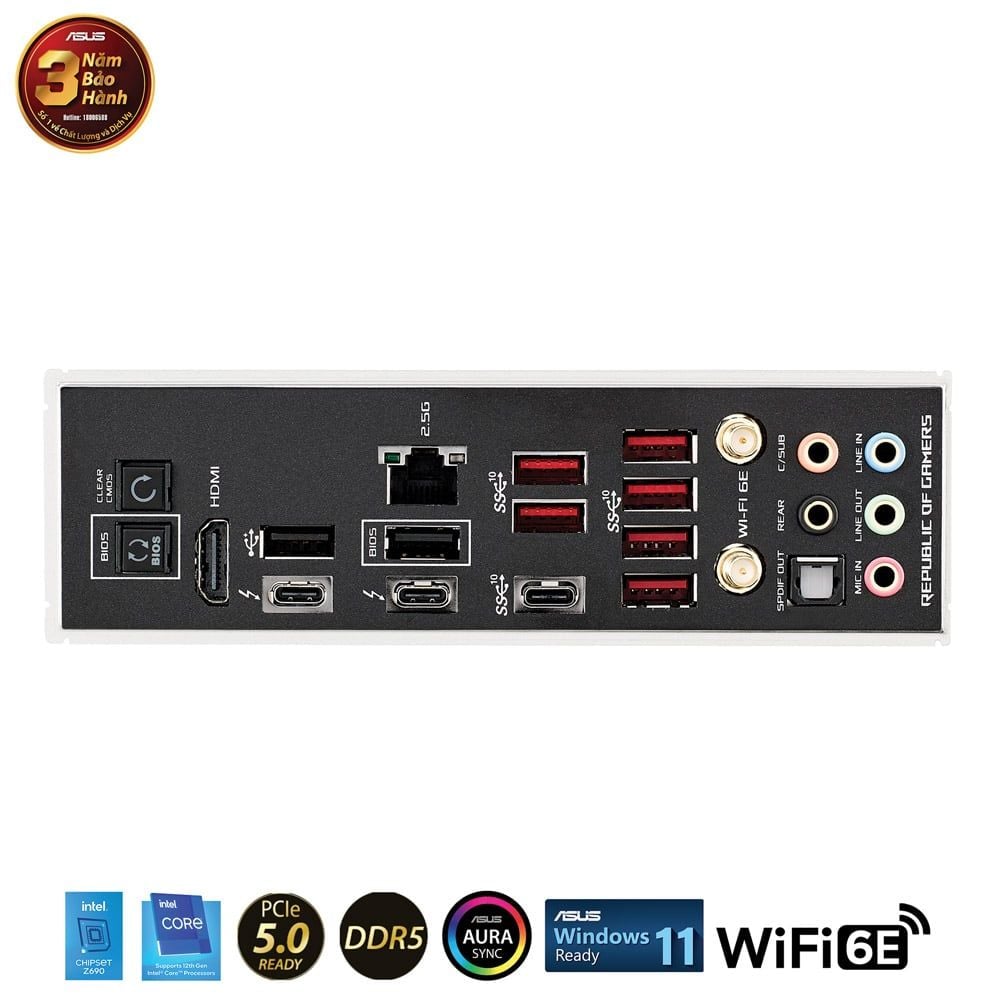

Cổng I/O phía sau2 x Thunderbolt™ 4 USB Type-C® ports
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
Cổng kết nối I/O

Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


4 x 4-pin Chassis Fan headers


1 x W_PUMP+ header


1 x 2-pin Water In header


1 x 2-pin Water Out header


1 x 3-pin Water Flow header


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connector


1 x 6-pin PCIe Graphics Card connector


Storage related


3 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)


2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x AURA RGB header


1 x FlexKey button


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x Start button


1 x ReTry button


1 x 10-1 pin System Panel header


1 x Thermal Sensor header

Tính năng đặc biệt

Extreme OC Kit

- FlexKey button


- ReTry button


- Start button


Extreme Engine Digi+


- 10K Black Metallic Capacitors


- MicroFine Alloy Choke


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-Code


- Q-Connector


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution


- M.2 heatsink backplate


- M.2 heatsinks


- VRM heatsink design


ASUS EZ DIY


- BIOS FlashBack™ button


- Clear CMOS button


- CPU Socket lever protector


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- AURA RGB header(s)


- Addressable Gen 2 header(s)


Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support


- Support: up to 60W charging*


- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A


- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS


* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W


ASUS HYDRANODE


- 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)


* Visit ASUS Website for the latest compatibility list.

Phần mềm đi kèm

ROG Exclusive Software


- ROG CPU-Z


- GameFirst VI


- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


- Sonic Radar III


- DTS® Sound Unbound


- BullGuard Internet Security (1-year full version)


ASUS Exclusive Software


Armoury Crate


- AIDA64 Extreme (1 year full version)


- AURA Creator


- AURA Sync


- Fan Xpert 4


- Two-Way AI Noise Cancelation


AI Suite 3


- Easy Optimization with AI Overclocking


 TPU


 EPU


 DIGI+ Power Control


 Turbo app


MyAsus


WinRAR


UEFI BIOS


AI Overclocking Guide


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


MemTest86

BIOS256 Mb Flash ROM, UEFI AMI BIOS
Quản lýWOL by PME, PXE
Phụ kiện đi kèm

Cables


1 x ARGB RGB extension cable


1 x RGB extension cable


4 x SATA 6Gb/s cables


ROG Hyper M.2 Card


1 x ROG Hyper M.2 Card with heatsink


2 x M.2 screw packages for ROG Hyper M.2 Card


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x M.2 Q-Latch package


2 x M.2 Q-Latch packages for M.2 backplate


1 x M.2 Rubber Package


1 x Q-connector


1 x ROG Graphics card holder


1 x ROG stickers


1 x ROG key chain


1 x ROG thank you card


Installation Media


1 x USB drive with utilities and drivers


Documentation


1 x User Guide

Hệ điều hànhWindows® 11 64-bit, Windows® 10 64-bit
Kích thướcATX
30.5cm x 24.4cm

Đánh giá chi tiết mainboard ASUS ROG MAXIMUS Z690 HERO DDR5

Tăng cường sức mạnh ép xung với DDR5

Mainboard ASUS ROG MAXIMUS Z690 HERO được trang bị khả năng hỗ trợ chuẩn RAM mới nhất hiện nay, DDR5. Không chỉ sở hữu tốc độ xử lý vượt trội với DDR4 mà còn đem tới khả năng ép xung tuyệt vời trên chiếc bo mạch chủ từ ASUS cho những bộ PC Gaming.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

Khả năng tản nhiệt tối ưu

Khả năng khai thác sức mạnh của ASUS ROG MAXIMUS Z690 HERO được góp phần bởi hiệu quả tản nhiệt. Trang bị chipset tản nhiệt cùng dàn VRM chất lượng, ASUS ROG MAXIMUS Z690 HERO đem lại sự cân bằng hoàn hảo khối lượng trên bề mặt của mainboard. Bạn có thể thoải mái lắp đặt những bộ tản nhiệt AIO hoặc tản nhiệt khí trên chiếc bo mạch chủ này.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

Kết nối siêu tốc độ

Mang trong mình dòng máu Z690, ASUS ROG MAXIMUS Z690 HERO cũng được sở hữu những công nghệ kết nối mới nhất hiện nay, bao gồm:

  • Intel WiFi 6E (GIG+) và Intel 2.5Gb Ethernet: ASUS ROG MAXIMUS Z690 HERO cho khả năng kết nối internet vượt bậc cùng công nghệ Intel 2.5Gb Ethernet. Ngoài ra, chiếc mainboard còn hỗ trợ bạn kết nối wifi cùng công nghệ WiFi 6E mới nhất hiện, cung cấp băng thông lớn gấp 3 lần.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

  • USB 3.2 Gen2x2 Type-C: Cổng USB 3.2 Gen2x2 trên ASUS ROG MAXIMUS Z690 HERO đem lại tốc độ truyền dữ liệu lên đến 20Gbps. Không những vậy, cổng USB được bổ trợ thêm công nghệ Quick Charge 4+ đem lại khả năng sạc nhanh cho các thiết bị.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

  • Thunderbolt 4: 2 cổng Thunderbolt 4 trên ASUS ROG MAXIMUS Z690 HERO cung cấp khả năng kết nối 2 chiều với tốc độ lên đến 40Gbps. Ngoài ra, Thunderbolt 4 hỗ trợ tối đa 2 màn hình 4K và mở rộng băng thông PCIe lên đến 32Gbps.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

  • Lưu trữ với 3 khe M.2: ASUS ROG MAXIMUS Z690 HERO trang bị 3 khe cắm M.2 cùng 2 khe SSD PCIe 4.0, bạn có thể thoải mái sắm những kho lưu trữ với những chuẩn mới nhất hiện nay.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

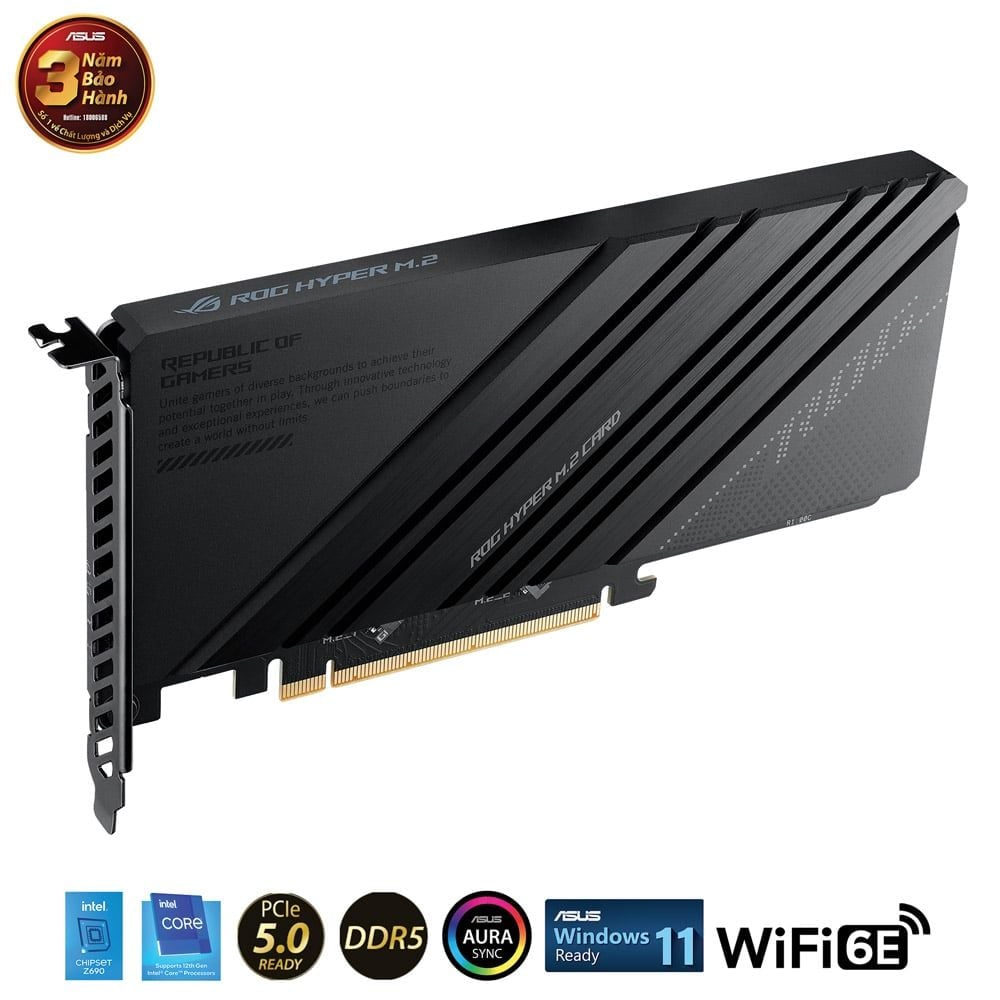

  • ROG HYPER M.2 CARD PCIE 5.0 READY: Đây là phụ kiện đóng vai trò như là một bộ nhớ lưu trữ đi kèm. ROG HYPER M.2 đi kèm với 2 khe cắm, 1 trong số đó là PCIe 5.0 cho tốc độ đọc, truyền dữ liệu vượt trội PCIe 4.0.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

  • ROG SupremeFX: Trang bị ROG SupremeFX, ASUS ROG MAXIMUS Z690 HERO cho tỉ lệ signal-to-noise vượt 113 dB cho chất lượng thu âm tốt nhất. Ngoài ra còn có một bộ điều chỉnh độ trễ thấp để phân phối điện năng sạch hơn đến codec SupremeFX ALC4082 và DAC tích hợp ESS ® 9018Q2C có khả năng đạt đến -115dB THD + N để cung cấp khả năng phát lại, truyền tải những âm thanh sắc nét, chân thực của từng bản nhạc.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5

Tối ưu hóa với những phần mềm đi kèm

Khi sở hữu ASUS ROG MAXIMUS Z690 HERO, đồng nghĩa với việc bạn đang có những công cụ tuyệt vời nhất từ nhà ASUS. Từ AI Suite 3 và Armory Crate cho bạn khả năng tinh chỉnh tất cả mọi yêu cầu với chiếc mainboard Z690, UEFI BIOS đem lại những cài đặt sâu bên trong của bo mạch chủ đến khả năng giám sát điện áp, tránh những sự cố về nguồn điện.

GEARVN.COM - ASUS ROG MAXIMUS Z690 HERO DDR5
