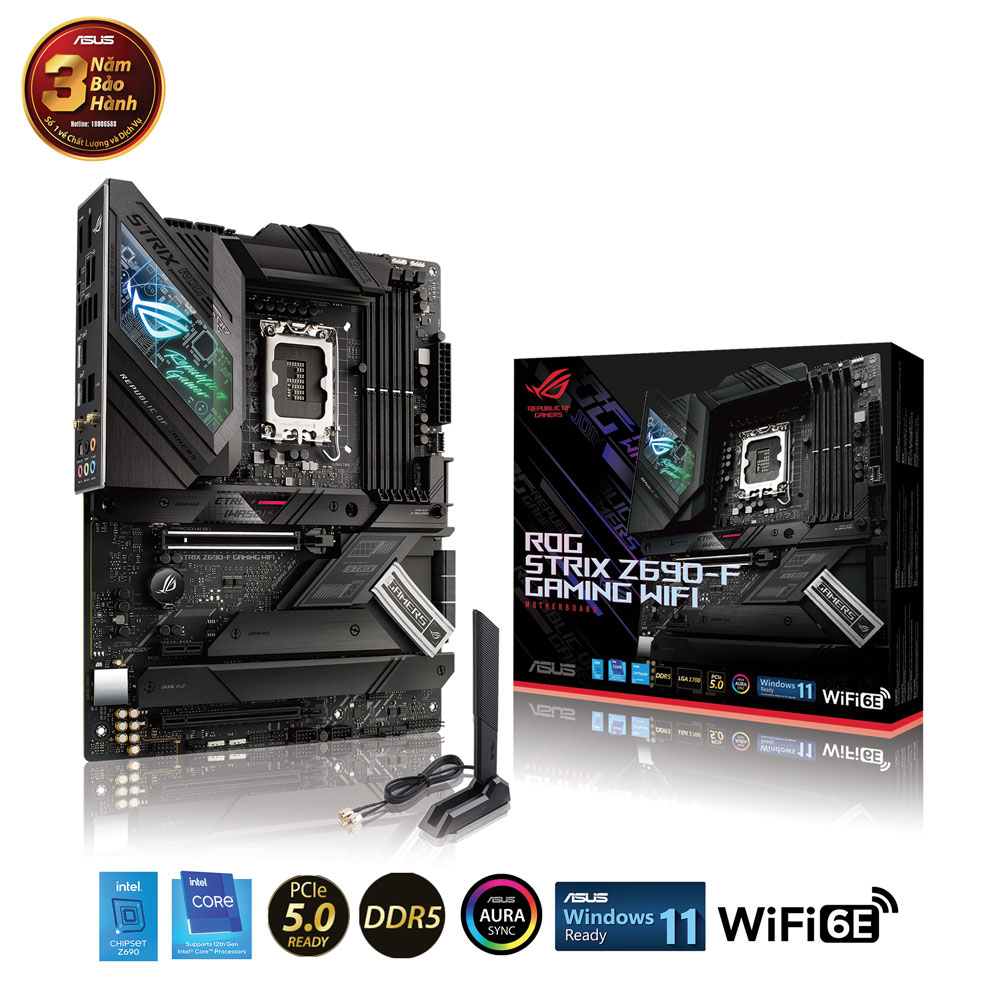

Bo mạch chủ ASUS ROG STRIX Z690-F GAMING WIFI (DDR5)

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports Intel® Extreme Memory Profile (XMP)


OptiMem II


* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

1 x DisplayPort**

 1 x HDMI®***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Support 8K@60Hz as specified in DisplayPort 1.4

*** Support 4K@60Hz as specified in HDMI 2.1.

Intel® 12th Gen Processors*


1 x PCIe 5.0 x16 slot


- Intel® 12th support PCIe 5.0 x16 mode


Intel® Z690 Chipset


1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)


1 x PCIe 3.0 x1 slot


* Please check PCIe bifurcation table in support site.

Intel®12th Gen Processors*


M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


Intel® Z690 Chipset**


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)***


6 x SATA 6Gb/s ports****


* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.


** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.


*** When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.


**** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
Wi-Fi 6E


2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band*


Bluetooth v5.2 hardware ready**


* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.


** Bluetooth v5.2 function will be ready in Windows 11 or later.

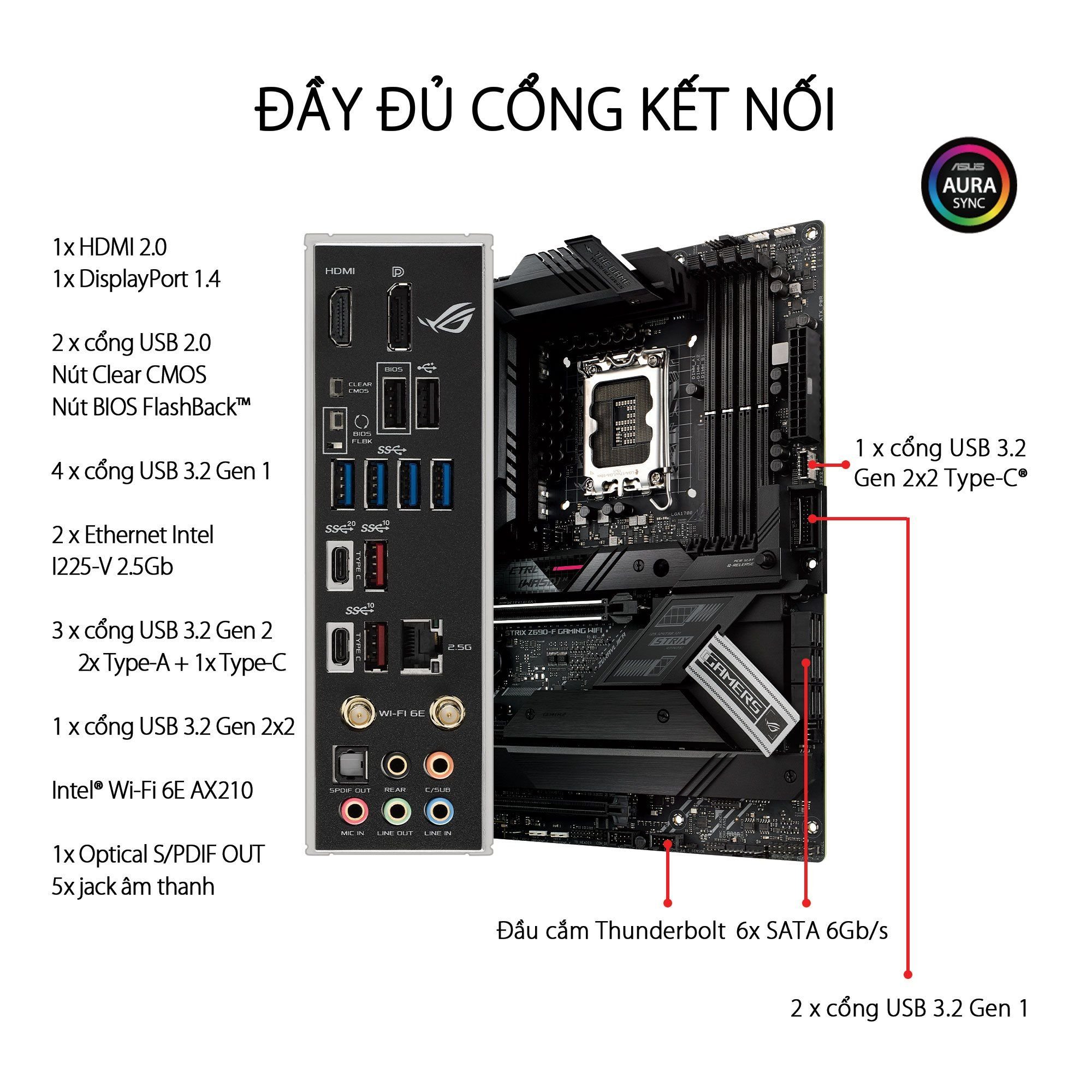

Phía sau: Tổng cộng 10 cổng
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)


3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)

Phía trước: Tổng cộng 7 cổng

Phía trước (Tổng cộng 7 cổng)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


- Impedance sense for front and rear headphone outputs


- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


- Supports up to 32-Bit/384 kHz playback"


Audio Features


- SupremeFX Shielding Technology


- ALC4080 + Savitech SV3H712 AMP


- Gold-plated audio jacks


- Rear optical S/PDIF out port


- Premium audio capacitors


- Audio cover

Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


5 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connector


Storage related


4 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous

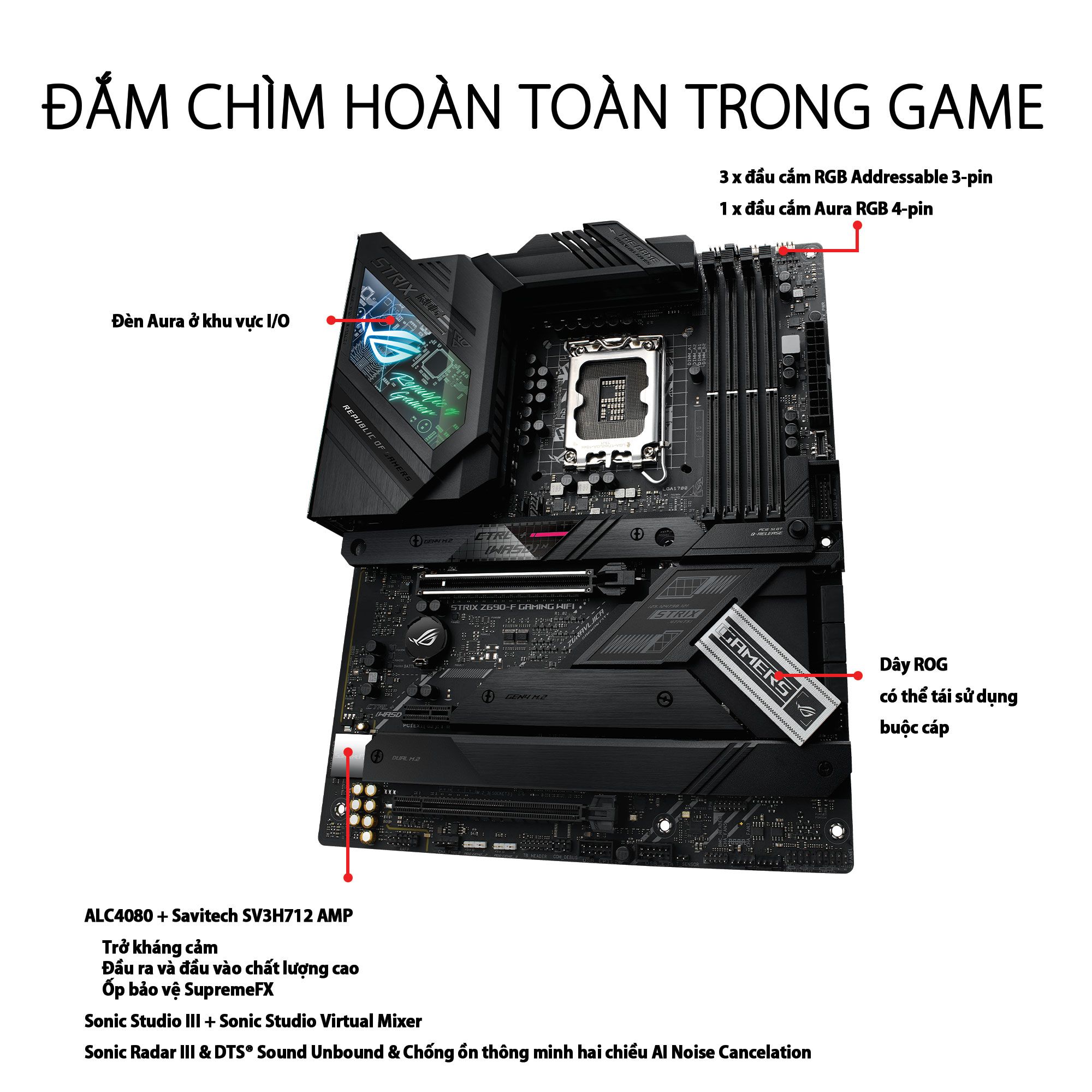

3 x Addressable Gen 2 headers


1 x AURA RGB header


1 x BMC header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x SPI TPM header (14-1pin)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 x Thunderbolt header

Extreme Engine Digi+


- 5K Black Metallic Capacitors


ASUS Q-Design


- M.2 Q-Latch


- PCIe Slot Q-Release


- Q-DIMM


- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])


- Q-Slot


ASUS Thermal Solution

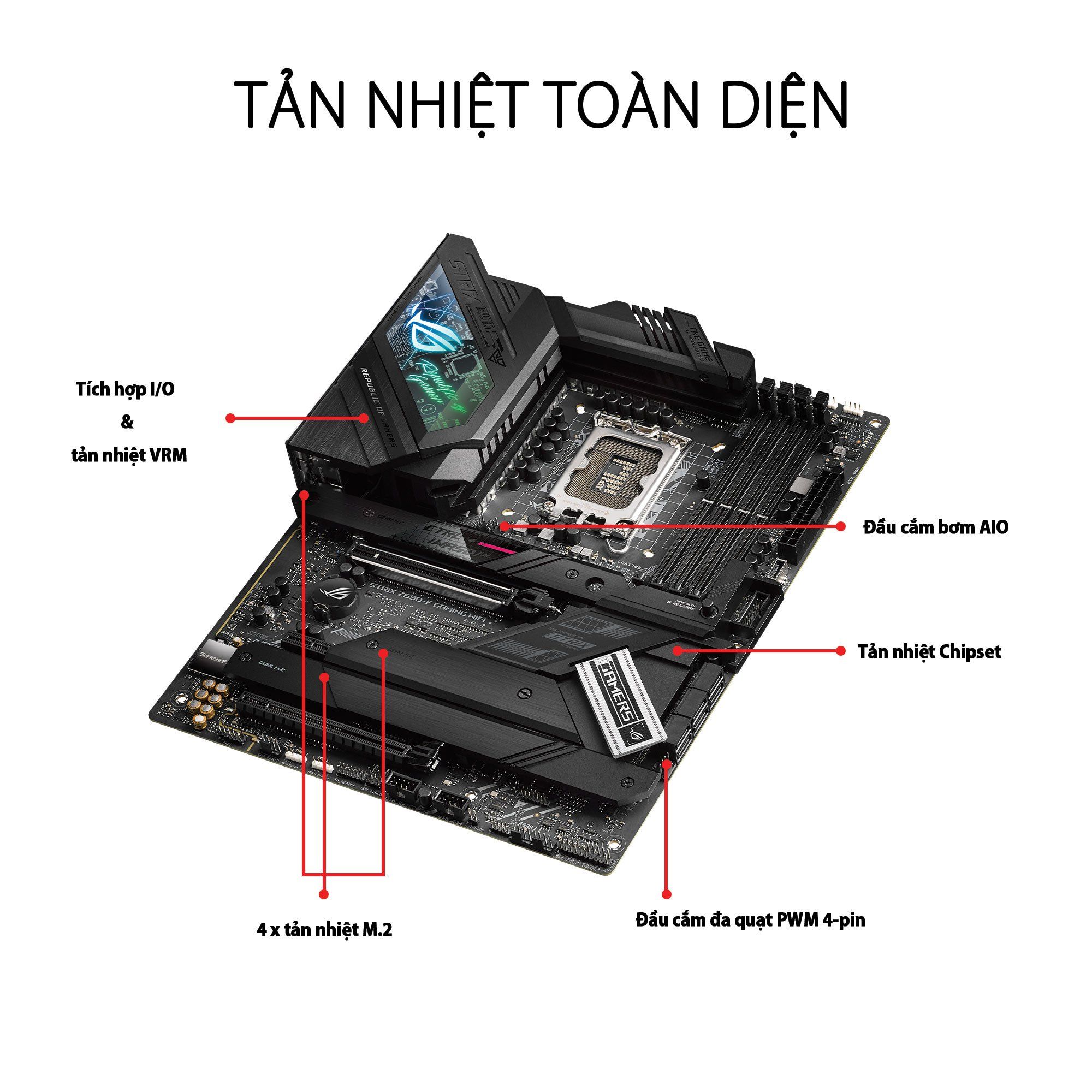

- M.2 heatsink backplate


- M.2 heatsink


ASUS EZ DIY


- BIOS FlashBack™ button


- BIOS FlashBack™ LED


- Clear CMOS button


 -CPU Socket lever protector


- ProCool II


- Pre-mounted I/O shield


- SafeSlot


- SafeDIMM


AURA Sync


- AURA RGB header


- Addressable Gen 2 RGB headers


ASUS HYDRANODE


- 1 x Chassis fan support* (CHA_FAN1P)


* Visit ASUS Website for the latest compatibility list.


TPM header
