| CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4400 MHZ
- 1DPC 2R max speed 3733 MHZ
- 2DPC 1R max speed 3866 MHZ
- 2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
Please refer www.msi.com for more information on compatible memory. |
| Expansion Slot | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
2x PCIe 3.0 x1 slots
The supported specification depends on installed processor. |
| Onboard Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Support HDCP 1.4 & 2.3
Maximum shared memory of 16 GB
Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed. |
| Storage | AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD B550 Chipset- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
| Audio | Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio |
| LAN | 1x Realtek® 8111HN Gigabit LAN controller |
| Internal connectors | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x Clear CMOS jumper |

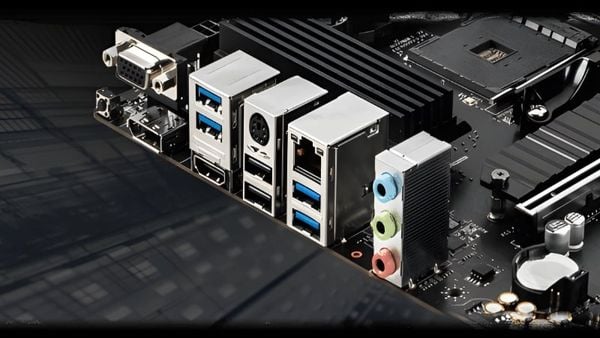

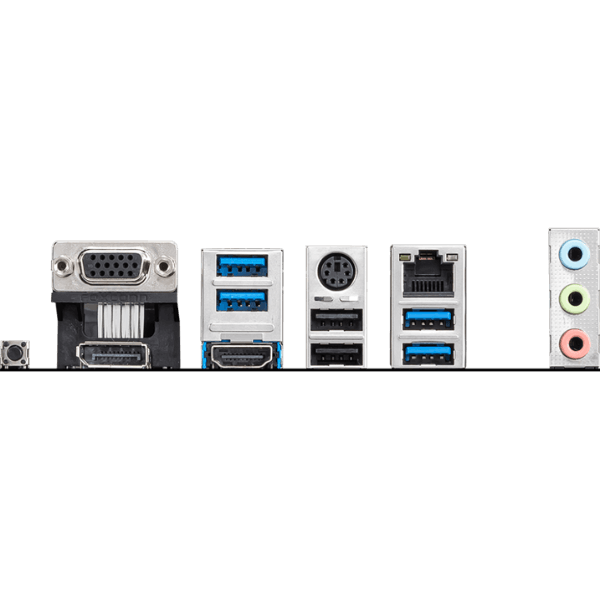

| Back panel ports | VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS button
DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
HD Audio Connectors |
| Dimensions | Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| MOUNTING | 8 mounting holes |
