| CPU | Intel® Socket 1151 For Xeon® E-2200/E-2100 family 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Build in Intel® C246 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 2666/2400/2133 MHz ECC and non-ECC Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
ECC Memory (ECC mode) support varies by CPU.
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Graphic | Integrated Graphics Processor- Intel® UHD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively) |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x2 mode)
2 x PCIe 3.0/2.0 x1 |
| Storage | Intel® C246 Chipset :
1 x M.2_1 socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)
1 x U.2 connector*2
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports |
| LAN | Intel® I210-AT, 1 x Gigabit LAN Controller(s)
Intel® I219-LM , 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
ASUS LAN Guard |
| Audio | Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB Ports | Intel® C246 Chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A, 2 at mid-board)
Intel® C246 Chipset :
6 x USB 2.0 port(s)
Intel® C246 Chipset :
4 x USB 2.0 port(s) (4 at mid-board) |
| Special Features | ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- Armoury Crate
- ASUS NODE: hardware control interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) |

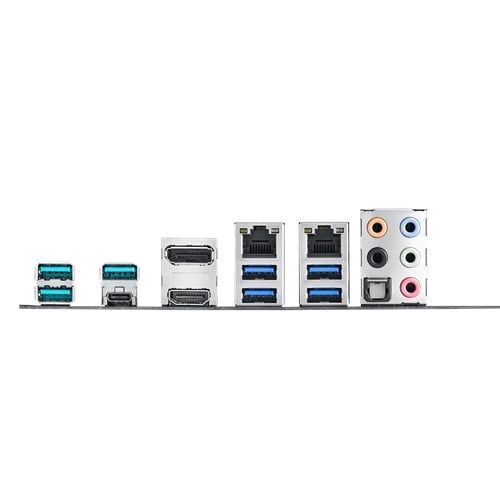

| Back I/O Ports | 1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
3 x USB 3.1 Gen 2 (teal blue)Type-A,
1 x USB 3.1 Gen 2 Type-C
4 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s) |
| Internal I/O Ports | 1 x AAFP connector
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s) ()
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x U.2 connector
1 x System panel connector
1 x COM port header
1 x AIO PUMP Header |

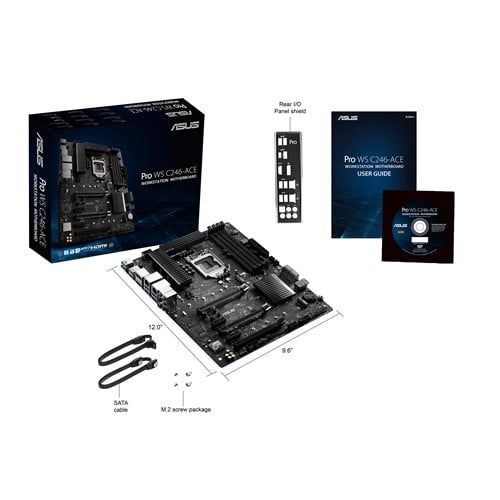

| Accessories | User's manual
I/O Shield
1 x M.2 Screw Package
1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
