MSI H510M-A PRO

Thông tin chung:

  • Nhà sản xuất: MSI
  • Bảo hành: 36 Tháng
  • Tình trạng: Mới 100%

Giá: 2,050,000₫

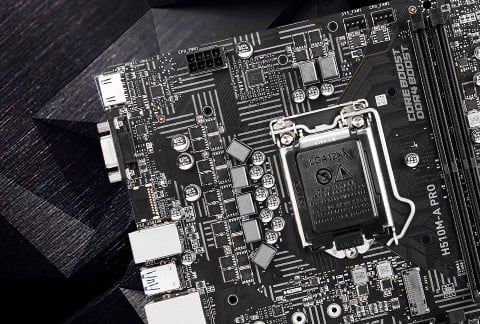

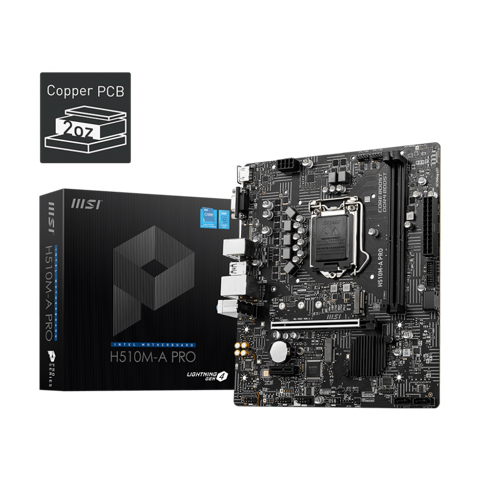

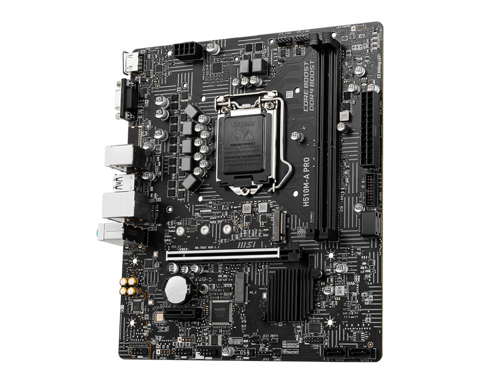

Bo mạch chủ MSI H510M-A PRO

Thông số kỹ thuật

CPU

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200

Chipet

Intel® H510 chipset

Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x PCIe 3.0 x1 slot (From PCH)
  • 1x M.2 slot with E key for WiFi module only(M2_2)
Onboard Graphics

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz[1]

1. Available only on processors featuring integrated graphics.

2. Graphics specifications may vary depending on the CPU installed.

Storage
  • 4x SATA 6Gb/s ports (From H510 Chipset)
  • 1x M.2 slot (Key M)
    • M2_1 slot (From H510 Chipset)[1]
      • Supports up to PCIe 3.0 x4
      • Supports 2242/ 2260/ 2280 storage devices

1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel® H510 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
AudioRealtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
LAN

  • 1x Intel® I219V 1Gbps LAN controller

Internal Connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector

Back Panel Ports

  • HDMI
  • VGA
  • Mouse / Keyboard
  • LAN port
  • Audio connector
  • USB 2.0 x4
  • USB 3.2 Gen 1 5Gbps Type-A x2

Form Factor

  • mATX Form Factor
  • 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Hệ điều hành

Hổ trợ cho Windows® 10 64-bit
