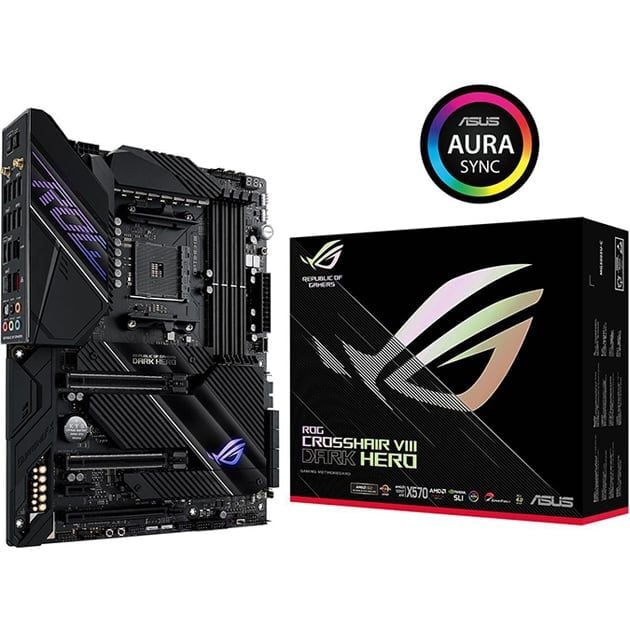

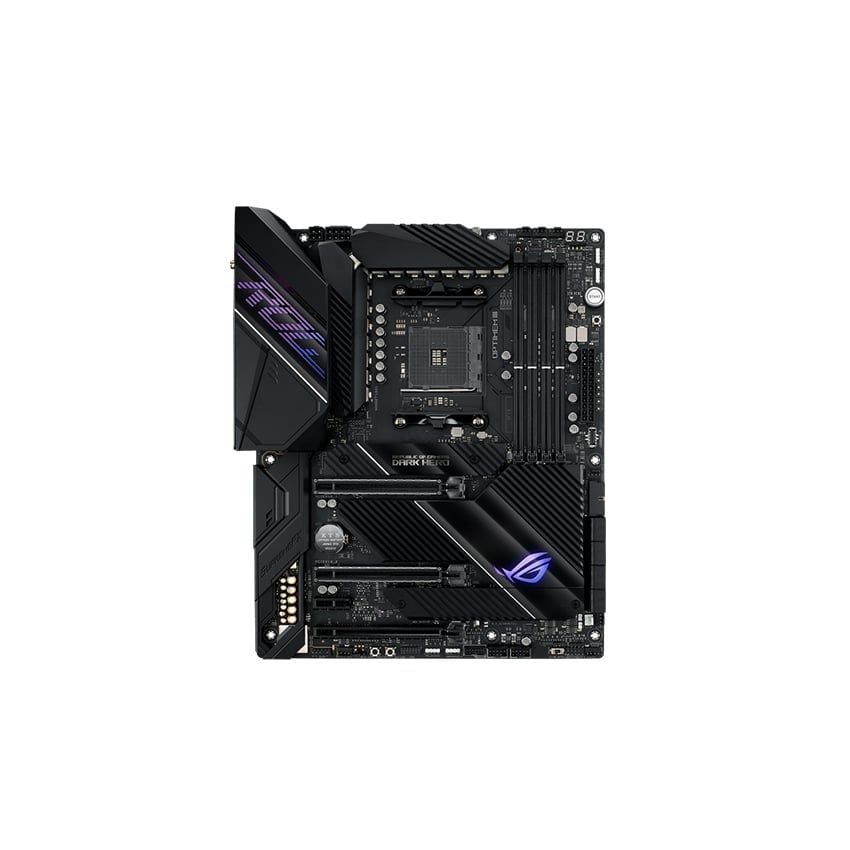

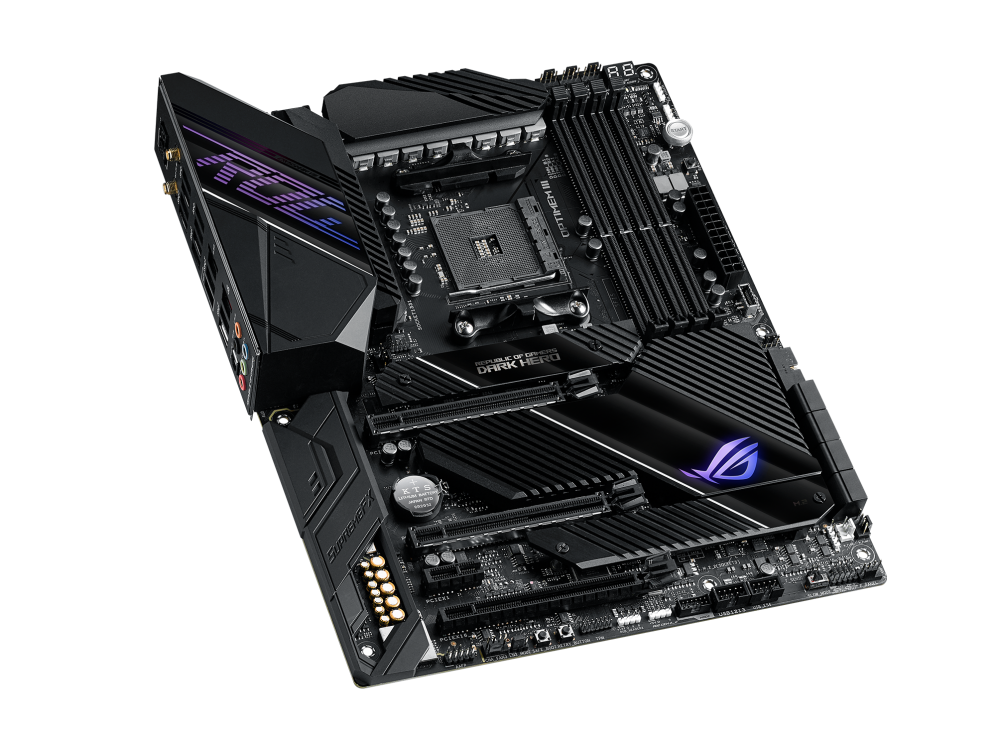

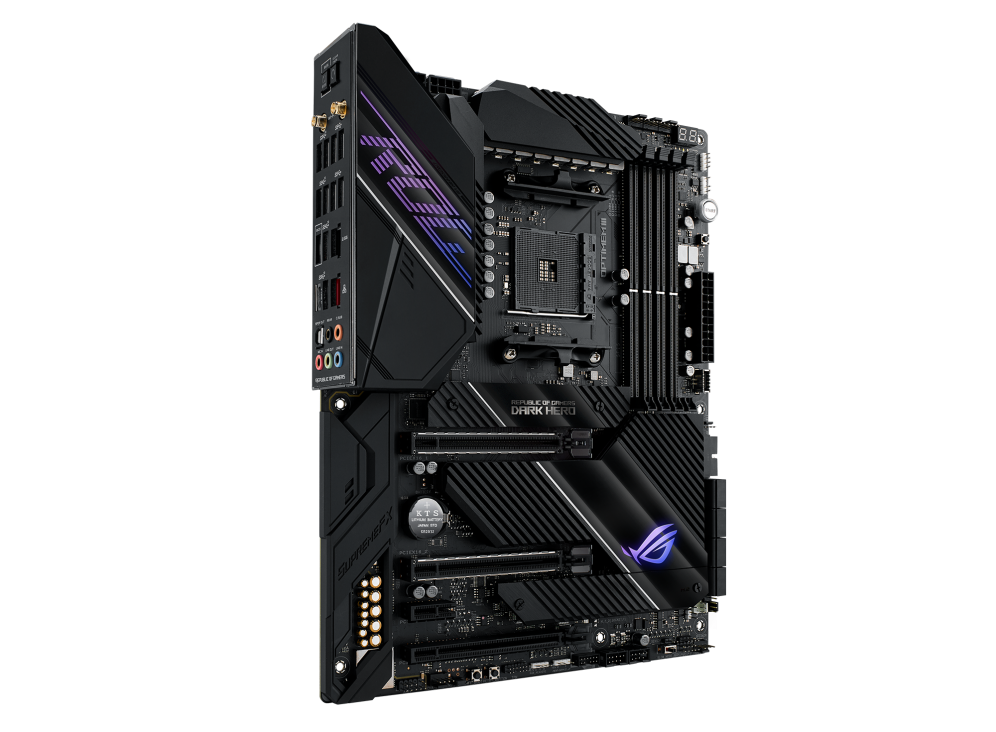

ASUS ROG X570 CROSSHAIR VIII DARK HERO

RAM hỗ trợ:

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

AMD Ryzen™ 4000 G-Series Desktop Processors

AMD RyzenTM 2000 Series Processors

• 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C) /4333(O.C.)/4266(O.C.)/4133(O.C.) /4000(O.C.)/3866(O.C.)/3800(O.C.) /3600(O.C.)/3466(O.C.)/3400(O.C.) /3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory

• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C) /4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.) /4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.) /3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

• 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.) /2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

• 4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Đa GPU:

Supports NVIDIA 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

Supports AMD 2-Way CrossFireX™ Technology

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>

AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors

Khe cắm mở rộng:

• 2 x PCIe 4.0 x16 (x16 or dual x8)
• 2 x PCIe 3.0 x16 (x16 or dual x8)
• 1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset

• 1 x PCIe 4.0 x16
• 1 x PCIe 4.0 x1

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD RyzenTM 4000 G-Series / 2000 Series Processors

AMD RyzenTM 3000 G-Series / 2000 G-Series Processors

Ổ cứng hỗ trợ:

• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
• 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

AMD X570 chipset :

• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 8 x SATA 6Gb/s port(s),
• Support Raid 0, 1, 10

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

LAN:

Âm Thanh:

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC

• Impedance sense for front and rear headphone outputs
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• High quality120dBSNR stereo playback outputand113dBSNR recording input
• ESS® ES9023P
• Supports up to 32-Bit/192kHz playback

Audio Feature :

• SupremeFX Shielding™ Technology
• Gold-plated jacks
• Optical S/PDIF out port(s) at back panel
• Audio Cover
• Dedicated audio PCB layers
• Premium Japanese audio capacitors
• Unique de-pop circuit
• Power pre-regulator: Reduces power input noise to ensure consistent performance

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB:

• 4 x USB 3.2 Gen 2 port(s)
• 4 x USB 3.2 Gen 1 port(s)

AMD X570 chipset :

• 1 x USB 3.2 Gen 2 front panel connector port(s)
• 6 x USB 3.2 Gen 1 port(s)
• 4 x USB 2.0 port(s)

AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors :

AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors :

Tính năng:

AURA :

• Aura RGB Strip Headers
• Addressable Gen 2 Header

ASUS EZ DIY :

• ASUS USB BIOS FlashBack™


ASUS Q-Design :

• ASUS Q-Code

• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

• ASUS Q-Slot

• ASUS Q-DIMM

• ASUS Q-Connector

Cổng kết nối (I/O Phía sau):

• 1 x Optical S/PDIF out

• 1 x Clear CMOS button(s)

• 1 x ASUS Wi-Fi Module

• 5 x Gold-plated audio jacks

• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports

• 8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
• 1 x BIOS FlashBack^™ Button(s)

• 1 x Anti-surge 2.5G LAN (RJ45) port
• Anti-surge LAN (RJ45) port

Cổng kết nối (I/O bên trong):

• 2 x Aura RGB Strip Headers
• 2 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x TPM connector(s)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x H_AMP fan connector
• 1 x W_PUMP+ connector
• 1 x 24-pin EATX Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Slow Mode switch(es)
• 1 x Reset button(s)
• 1 x Node Connector(s)
• 1 x LN2 Mode jumper(s)
• 1 x Safe Boot button
• 1 x ReTry button
• 1 x System panel connector
• 1 x T_Sensor Connector
• 1 x W_IN header
• 1 x W_OUT header
• 1 x W_FLOW header
• 1 x Start button
• 1 x Speaker connector
• 1 x USB 3.2 Gen 2 (up to 10Gbps) connector
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
• 2 x M.2 Socket 3
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)

Phụ kiện:

• 4 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
• 1 x ROG big sticker
• 1 x Q-Connector
• 1 x Wi-Fi Antenna(s)
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Extension cable for Addressable LED
• 1 x ROG coaster(s)
• 1 x ROG Thank you card
• 1 x M.2 SSD screw package(s)
